TECHNICAL DATASHEET980-1080nm 20W TGG Multimode Optical Isolator
TGG multimode optical isolator for 980-1080 nm systems using MM-50/125, MM-62.5/125 or MM-S105/125 fiber, intended for fiber-laser, amplifier and test applications.
Technical Specifications
Parameter
Specification
Unit
Center Wavelength
1064, 1030, 980
nm
Operating Wavelength Range
±5
nm
Typical Peak Isolation @ 23°C
20
dB
Min. Isolation @ 23°C
18
dB
Typical Insertion Loss @ 23°C
1.3
dB
Max. Insertion Loss @ 23°C
1.5
dB
Min. Return Loss (Input / Output)
30
dB
Max. Average Power
0.5, 1, 5, 10 or specified
W
Max. ns Pulse Peak Power
10 or specified
kW
Package - MM-50/125, MM-62.5/125
58 x 28 x 26
mm
Package - MM-S105/125-22A
76 x 28 x 26
mm
Max. Tensile Load
5
N
Operating Temperature
+10 to +50
°C
Storage Temperature
0 to +60
°C
Technical Datasheet
Review the specification table and confirm wavelength, power, fiber, connector and package for the required configuration.
Review the specification table and confirm wavelength, power, fiber, connector and package for the required configuration.
Package Dimensions

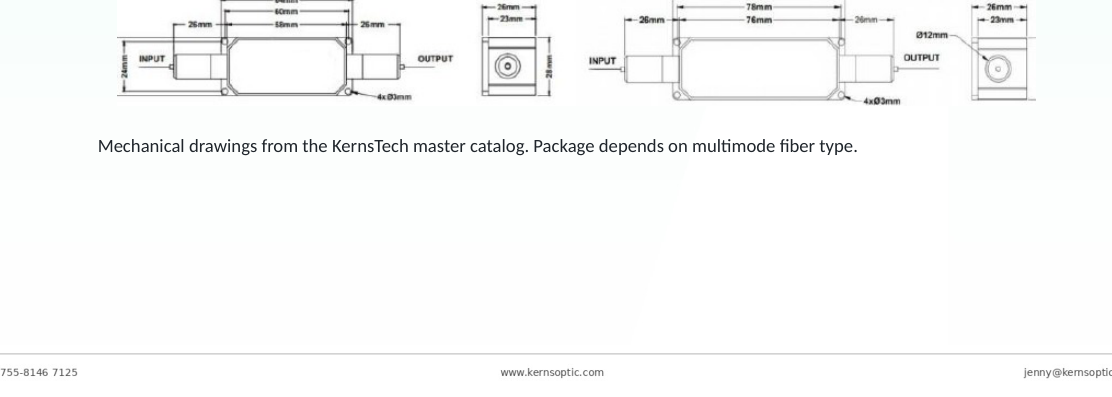

Mechanical drawings from the KernsTech technical documentation. Package depends on multimode fiber type.Package Dimensions
Mechanical package drawing from the KernsTech technical datasheet. Confirm the final package, pigtail and connector configuration with the quotation.
