TECHNICAL DATASHEETOptical Filter
KernsTech Optical Filter for Fiber Optical Laser; Test Instrument; Fiber Sensors; Erbium-doped Optical Fiber Amplifier.
Technical Specifications
Parameter
Specification
Unit
Center Wavelength
1550, 1064, 1030 or Specified
nm
Min. Channel Bandwidth(@-0.5dB)
2, 5 , 8 , 15 or Specified
nm
Min. Cutoff Bandwidth (@-25dB)
Specified
nm
Max. Insert loss@ channel
0.8
dB
Min. Extinction Ratio 23℃(PM Fiber Type)
20
dB
Max. Polarization Dependent Loss@23℃(Single Mode Fiber Type)
0.15
dB
Min. Return Loss
50
dB
Max. Power Handling (CW)
0 .5, 1 ,5 , 10, 20 or Specified
W
Max.ns pulse peak power
10 or Specified
kW
Max.Tensile Load
5
N
Operating temperature
0 ~ +70
℃
Storage temperature
-40~ +85
℃
Package Options
dia. 5.5 x 35 / 70 x 12 x 8
mm
Technical Datasheet
Review the specification table and confirm wavelength, power, fiber, connector and package for the required configuration.
Review the specification table and confirm wavelength, power, fiber, connector and package for the required configuration.
Package Dimensions

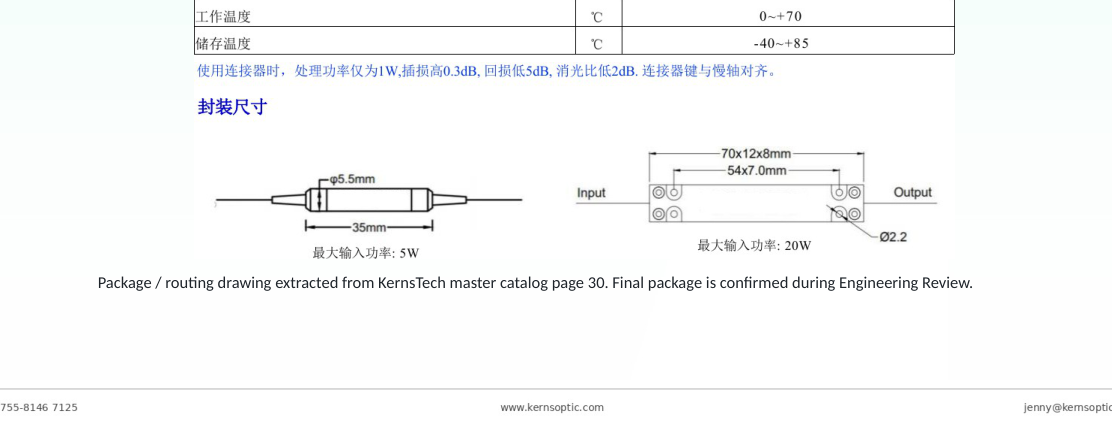

Package / routing drawing extracted from KernsTech technical documentation page 30. Final package is confirmed during Engineering Review.Package Dimensions
Mechanical package drawing from the KernsTech technical datasheet. Confirm the final package, pigtail and connector configuration with the quotation.
