TECHNICAL DATASHEETPM DWDM Module
KernsTech PM DWDM Module for DWDM System; GPON Network; CATV Router.
Technical Specifications
Parameter
Specification
Unit
Channel Number
1x2 / 1x4 / 1x8 / 1x16
Center Wavelength
ITU Grid
nm
Channel Spacing
100 or 200
GHz
Center Wavelength Accuracy
100G: ±0.05 ; 200G: ±0.1
nm
Channel Passband (@-0.5dB)
100G:0.22 ; 200G:0.5
nm
Max. Insertion Loss - Mux to Demux (Link)
2 / 2.6 / 3.7 / 5
dB
Min. Isolation - Adjacent Channel
30 / 30 / 30 / 30
dB
Non-Adjacent Channel
40 / 40 / 40 / 40
dB
Min. Isolation - Upgrade Channel
10 / 10 / 10 / 10
dB
Max. Channel Flatness
0.3
dB
Min. Return Loss
50
dB
Min. Extinction Ratio@23℃
18
dB
Max. Wavelength Thermal Stability
0.003
nm/℃
Max.Insertion Loss Thermal Stability
0.005
dB/℃
Max. Power Handling (CW)
500
mW
Operating temperature
0~+70
℃
Storage temperature
-40~+85
℃
Package Options
100 x 80 x 10 / 120 x 80 x 18 / 140 x 140 x 10
mm
Technical Datasheet
Review the specification table and confirm wavelength, power, fiber, connector and package for the required configuration.
Review the specification table and confirm wavelength, power, fiber, connector and package for the required configuration.

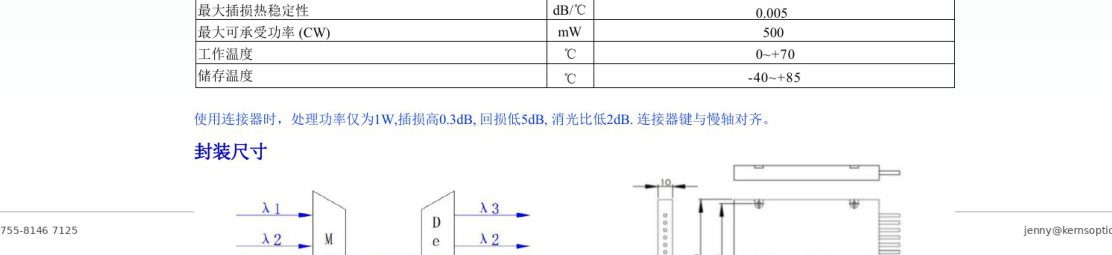

Package Dimensions
Package / routing drawing extracted from KernsTech technical documentation page 34. Final package is confirmed during Engineering Review.Package Dimensions
Mechanical package drawing from the KernsTech technical datasheet. Confirm the final package, pigtail and connector configuration with the quotation.
