TECHNICAL DATASHEET1310/1550nm High Isolation Fused WDM
KernsTech 1310/1550nm High Isolation Fused WDM for fiber-optic systems.
Technical Specifications
Parameter
Specification
Unit
Type
Normal Size SWDM / Mini Size SWDM / High Isolation HWDM
-
Wavelength
1310 / 1550
nm
Bandwidth
±15
nm
Grade
Normal: P/A; Mini: P/A; HWDM: P
-
Insertion Loss
Normal ≤0.2/≤0.3; Mini ≤0.25/≤0.35; HWDM ≤0.5
dB
Isolation
Normal ≥17/≥16; Mini ≥17/≥16; HWDM ≥40
dB
Polarization Dependent Loss
Normal ≤0.05/≤0.10; Mini ≤0.08/≤0.12; HWDM ≤0.10
dB
Return Loss
≥55
dB
Directionality
≥55
dB
Operating Temperature
0 to +70
°C
Storage Temperature
-40 to +85
°C
Port Type
1x2 or 2x2
-
Package Options
dia. 3.0x54 / 3.0x40 / 3.0x60 / 2.4x30 / 90x20x9.5 / 100x80x10
mm
Technical Datasheet
Review the specification table and confirm wavelength, power, fiber, connector and package for the required configuration.
Review the specification table and confirm wavelength, power, fiber, connector and package for the required configuration.

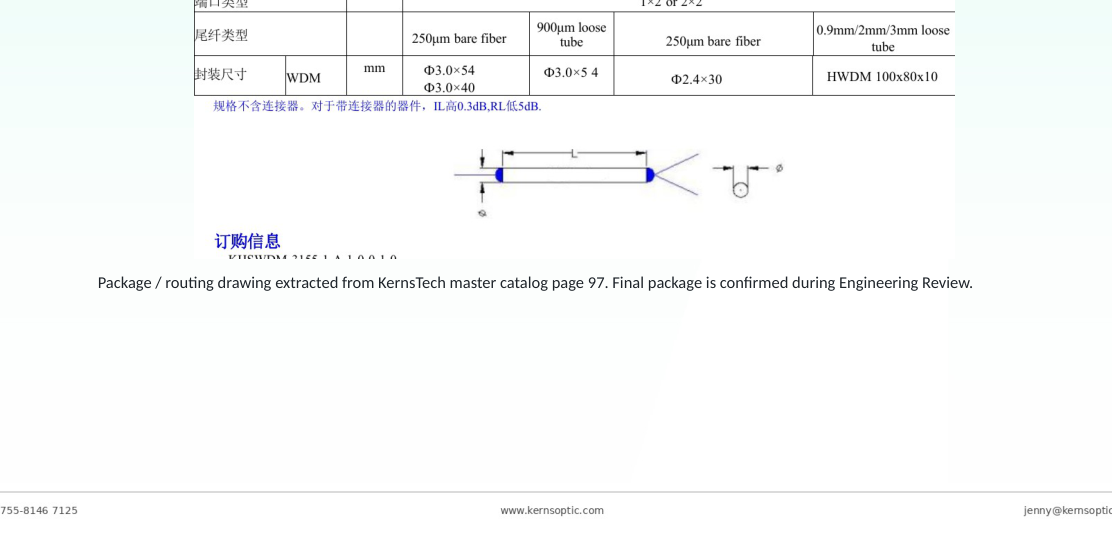

Package Dimensions
Package / routing drawing extracted from KernsTech technical documentation page 97. Final package is confirmed during Engineering Review.Package Dimensions
Mechanical package drawing from the KernsTech technical datasheet. Confirm the final package, pigtail and connector configuration with the quotation.
