1064nm 2W In-Line Optical Isolator
Medium-power in-line optical isolator for 1064 nm fiber amplifiers and laser systems. Handles up to 2W average optical power with typ. 35 dB (single stage) or 50 dB (dual stage) isolation.
Technical Specifications
Parameter
Specification
Unit
Grade
Single / Dual
-
Center Wavelength
1064
nm
Operating Wavelength Range
±5
nm
Typical Peak Isolation @ 23°C
35 / 50
dB
Min. Isolation @ 23°C
27 / 45
dB
Max. IL @ 23°C (baseline)
1.7 / 3.8
dB
Max. IL @ 300 mW input
2.0 / 4.0
dB
Max. IL @ 1 W input
2.5 / 4.5
dB
Max. IL @ 2 W input
3.0 / 5.5
dB
Min. Extinction Ratio (PM fiber)
20
dB
Max. PDL (SM fiber)
0.15
dB
Min. Return Loss
45
dB
Max. Power Handling (CW)
2
W
Package Dimensions
33 x 17 x 11.5 mm (Single Stage) / 60 x 17 x 11.5 mm (Dual Stage)
mm
Max. Tensile Load
5
N
Operating Temperature
0 to +50
°C
Storage Temperature
-40 to +85
°C
Technical Datasheet Note
Values for Single / Dual shown respectively. With connectors, power is limited to 1W, IL is 0.3 dB higher, RL is 5 dB lower, and ER is 2 dB lower. Available in PM Panda fiber or SMF-28e.
Values for Single / Dual shown respectively. With connectors, power is limited to 1W, IL is 0.3 dB higher, RL is 5 dB lower, and ER is 2 dB lower. Available in PM Panda fiber or SMF-28e.
Configuration and ordering notes
This series covers power levels between low-power isolators and larger high-power packages. Stage count and isolation are reviewed for the intended configuration.
Selection Guidance: Review thermal dissipation, damage thresholds and cooling options in our High Power Optical Isolator Guide ↗ or compare operating bands in the 1064nm and 1550nm Optical Isolator Selection.
Key Applications
Fiber amplifiers; MOPA fiber lasers; Seed laser isolation; Industrial marking laser pre-amplifiers.

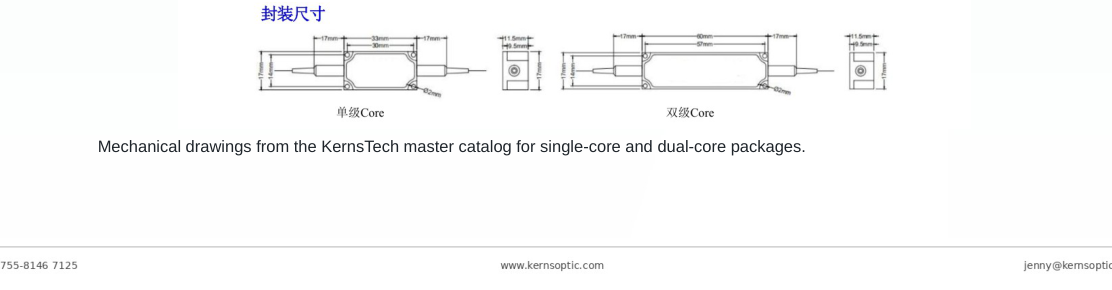

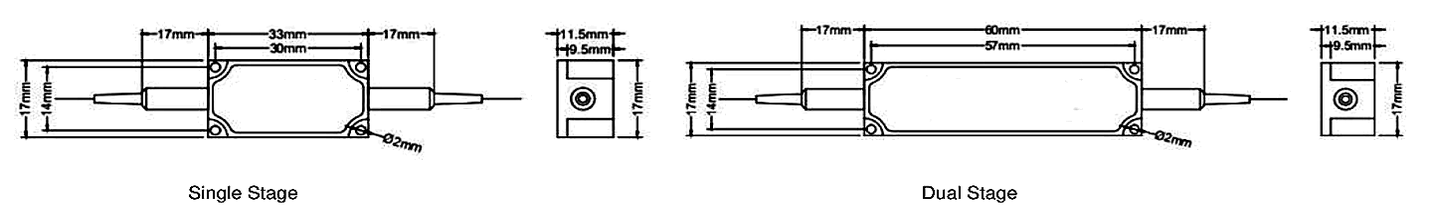

Package Drawing
