980-1080nm 50W-100W TGG High Power Optical Isolator

High-power TGG in-line optical isolator handling 50W and 100W average CW optical power across 980 nm to 1080 nm bands. Features typ. 30 dB isolation, 0.8 dB insertion loss, and large-mode-area (LMA) fiber support.

Download Datasheet Request a Quote

Technical Specifications

Parameter
Specification
Unit
Center Wavelength
1064, 1030, 980 or specified
nm
Operating Wavelength Range
±5
nm
Typical Peak Isolation @ 23°C
30
dB
Min. Isolation @ 23°C
26
dB
Typical Insertion Loss @ 23°C
0.8
dB
Max. Insertion Loss @ 23°C
1.0
dB
Min. Extinction Ratio @ 23°C (PM)
20
dB
Max. PDL @ 23°C (SM fiber)
0.15
dB
Min. Return Loss (Input / Output)
45
dB
Max. Average Power
50 / 100
W
Max. ns Pulse Peak Power
10 or specified
kW
Package Dimensions
76 x 38 x 35 mm
mm
Max. Tensile Load
5
N
Operating Temperature
+10 to +50
°C
Storage Temperature
0 to +60
°C
Technical Datasheet Note & Cooling Requirements
Conduction or water cooling is strictly required for 100W CW continuous operation. The mounting baseplate temperature must be maintained at ≤ 30°C using water cooling with a recommended flow rate of 1.0–1.5 L/min (thermal impedance < 0.2 K/W via OFHC copper heatsink mount). Fiber leads available in 10/125, 20/130, 25/250, 30/250 PM or non-PM DCF. Custom configurations confirmed during Engineering Review.
Configuration and ordering notes

Selected for multi-kilowatt laser systems, high-power fiber amplifiers, and laser cutting engines. Engineering review covers average power rating (50W or 100W), operating wavelength, and fiber core/cladding diameter during configuration review.

Selection Guidance: Review thermal dissipation, damage thresholds and cooling options in our High Power Optical Isolator Guide ↗ or compare operating bands in the 1064nm and 1550nm Optical Isolator Selection.

Key Applications

High-power fiber lasers; Fiber laser welding & cutting; High-power amplifier protection; Medical & scientific laser systems.

Related products

1064nm 10W TGG High Power In-Line Optical Isolator
Compare the listed center wavelength and operating wavelength range for this related configuration. 780-1080nm 20W TGG High Power In-Line Optical Isolator
Compare the listed center wavelength and operating wavelength range for this related configuration. 1310-1550nm 20W High Power Optical Isolator
Compare the listed center wavelength and operating wavelength range for this related configuration.

Selection guides

How to Select an Optical Isolator How to Select High Power Optical Isolators: Thermal Dissipation & Fiber Matching

Package Drawing

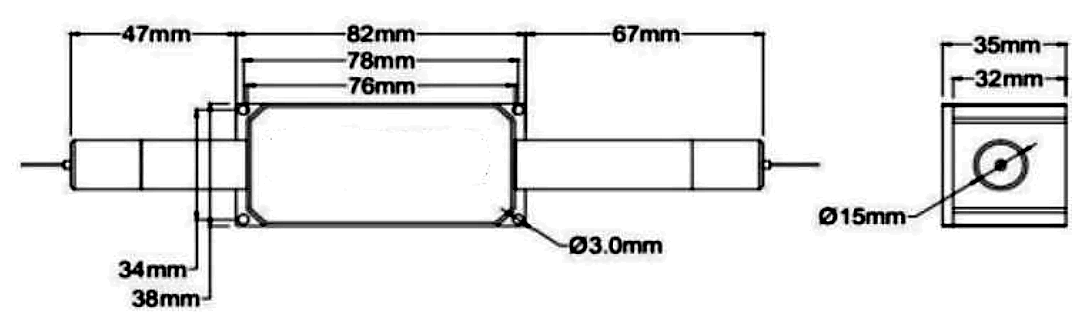

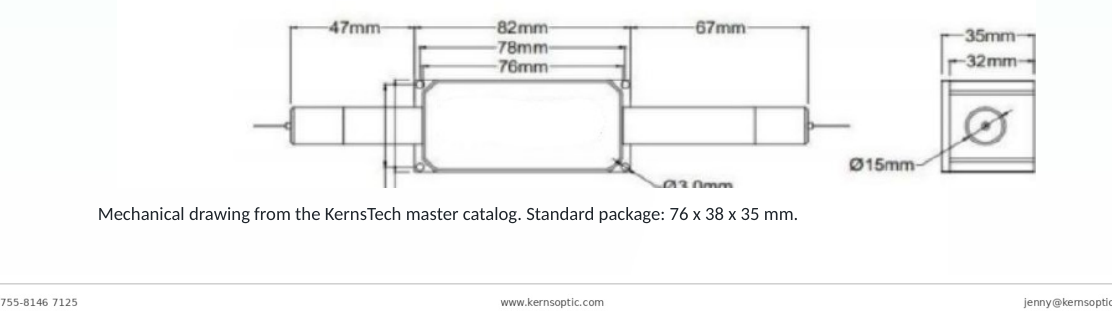

008 980-1080nm 50W-100W TGG High Power Optical Isolator, Center Wavelength: 1064, 1030, 980 or specified – KernsOptic

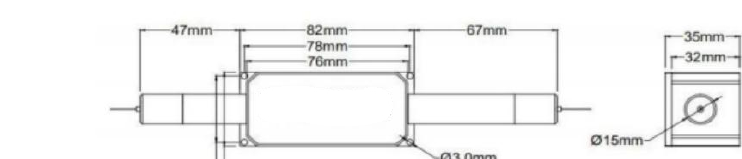

Package reference for 980-1080nm 50W-100W TGG High Power Optical Isolator. Confirm the final configuration during engineering review.
