1030nm 50mW PM Optical Circulator
Compact 3-port polarization-maintaining optical circulator for 1030 nm Ytterbium fiber lasers, optical sensing, and test instrumentation. Features typ. 30 dB isolation, low insertion loss, and high extinction ratio.
Technical Specifications
Parameter
Specification
Unit
Port Type
3 Port
-
Center Wavelength
1030
nm
Operating Wavelength Range
±5
nm
Typical Peak Isolation
30
dB
Min. Isolation @ 23°C
25
dB
Typical Insertion Loss @ 23°C
1.8
dB
Max. Insertion Loss @ 23°C
2.4
dB
Min. Extinction Ratio @ 23°C
20
dB
Min. Return Loss
50
dB
Min. Crosstalk
45
dB
Max. Optical Power (CW)
50
mW
Package Dimensions
dia. 5.5 x 35 mm
mm
Max. Tensile Load
5
N
Operating Temperature
0 to +60
°C
Storage Temperature
-40 to +85
°C
Technical Datasheet Note
With connectors, handling power is limited to 1W, IL is 0.3 dB higher, RL is 5 dB lower, and ER is 2 dB lower. Fast axis blocked by default; both axes working available upon request.
With connectors, handling power is limited to 1W, IL is 0.3 dB higher, RL is 5 dB lower, and ER is 2 dB lower. Fast axis blocked by default; both axes working available upon request.
Configuration and ordering notes
Selected for compact 1030 nm PM fiber routing where minimum component footprint (dia. 5.5 x 35 mm) and high polarization purity are required. Engineering review covers connector type and fiber jacket during configuration review.
Selection Guidance: Compare non-reciprocal routing and optical sensing isolation in our 3-Port Optical Circulator for Fiber Sensing Guide ↗ or 1064nm and 1550nm Optical Circulator Selection.
Key Applications
1030 nm Yb-doped seed lasers; PM fiber amplifiers; Fiber sensor interrogation; Optical metrology.

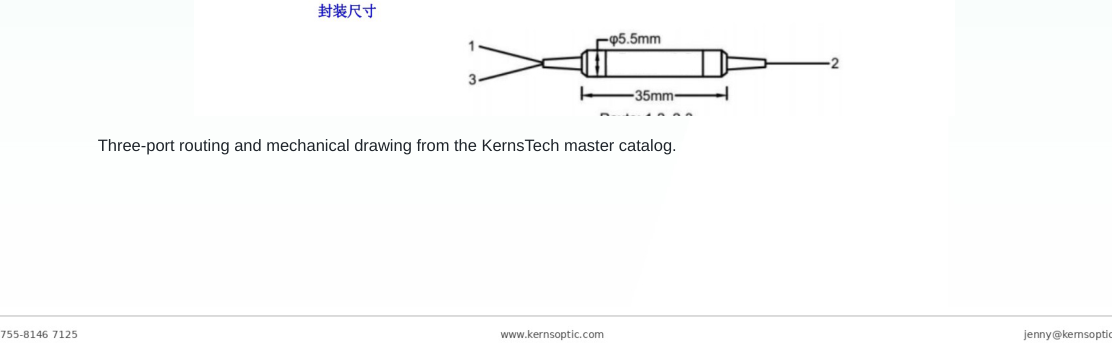

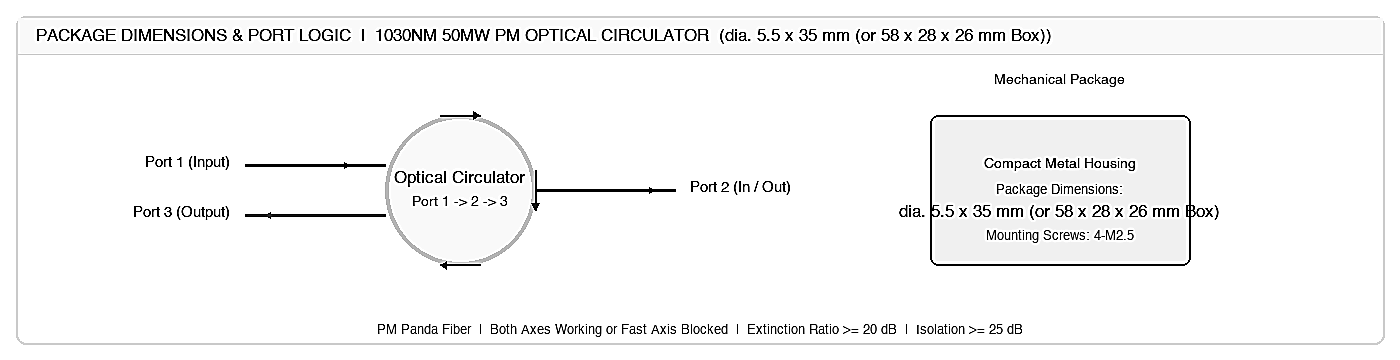

Package Drawing
Need an exact configuration?
A quotation review can begin with the application, quantity and available component information. Wavelength, optical power, fiber and termination details can be clarified with engineering.
