Optical Filter
Thin-film narrow bandpass and edge optical filter for fiber lasers, test instruments, fiber sensors, and EDFA optical noise suppression with power handling up to 20W CW.
Technical Specifications
Parameter
Specification
Unit
Center Wavelength
1550, 1064, 1030 or Specified
nm
Min. Channel Bandwidth (@-0.5dB)
2, 5, 8, 15 or Specified
nm
Min. Cutoff Bandwidth (@-25dB)
Specified by application
nm
Max. Insertion Loss @ Channel
0.8
dB
Min. Extinction Ratio (PM Fiber)
20
dB
Max. PDL (SM Fiber)
0.15
dB
Min. Return Loss
50
dB
Max. Power Handling (CW)
0.5, 1, 5, 10, 20 or Specified
W
Max. Pulse Peak Power
10 or Specified
kW
Max. Tensile Load
5
N
Package Options
dia. 5.5 x 35 (≤5W) / 70 x 12 x 8
mm
Package Dimensions
dia. 5.5 x 35 mm (<=5W) / 70 x 12 x 8 mm (<=20W)
-
Operating Temperature
0 to +70
°C
Storage Temperature
-40 to +85
°C
Technical Datasheet Note
For devices with connectors, power handling is limited to 1W; IL is 0.3 dB higher, RL is 5 dB lower, ER is 2 dB lower. Default connector key is aligned to the slow axis.
For devices with connectors, power handling is limited to 1W; IL is 0.3 dB higher, RL is 5 dB lower, ER is 2 dB lower. Default connector key is aligned to the slow axis.
Configuration and ordering notes
Passband width and out-of-band rejection are reviewed against the signal spectrum and filtering requirement.
Selection Guidance: Compare TFF vs FBT multiplexing and ASE suppression in our WDM & Optical Filters for EDFA Guide ↗ or PM WDM Selection Guide ↗.
Key Applications
Fiber optical lasers; Optical test instruments; Fiber sensors; Erbium-doped optical fiber amplifiers (EDFA).

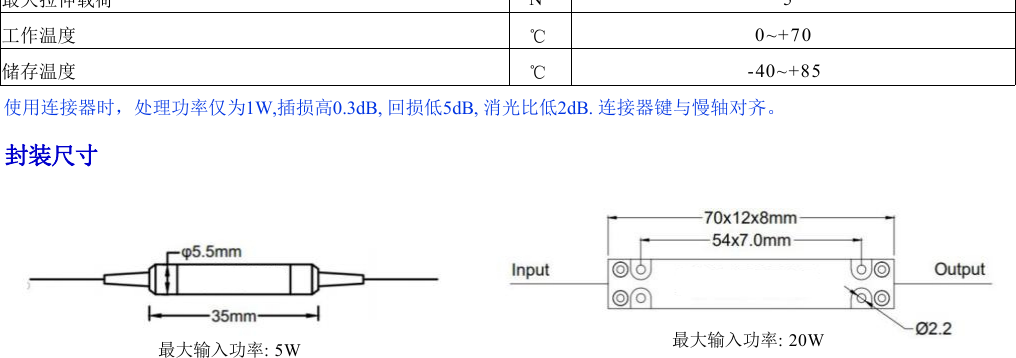

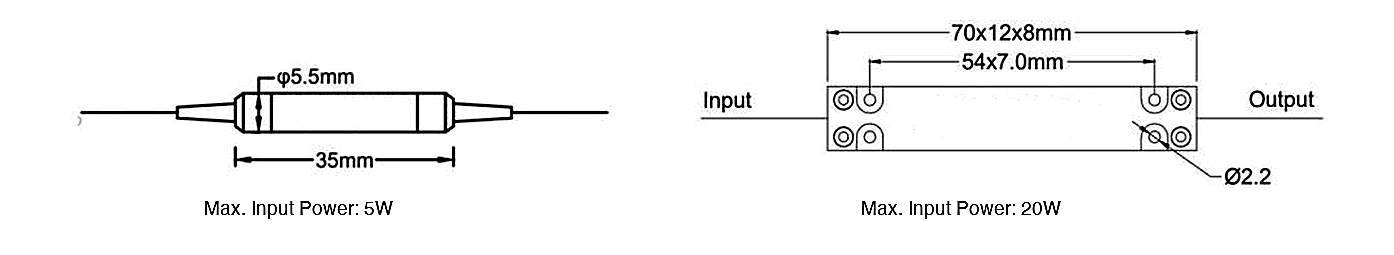

Package Drawing
Need an exact configuration?
A quotation review can begin with the application, quantity and available component information. Wavelength, optical power, fiber and termination details can be clarified with engineering.
