PM DWDM Module
KernsOptic PM DWDM Module for DWDM System; GPON Network; CATV Router.
Technical Specifications
Parameter
Specification
Unit
Channel Number
1x2 / 1x4 / 1x8 / 1x16
Center Wavelength
ITU Grid
nm
Channel Spacing
100 or 200
GHz
Center Wavelength Accuracy
100G: ±0.05 ; 200G: ±0.1
nm
Channel Passband (@-0.5dB)
100G:0.22 ; 200G:0.5
nm
Max. Insertion Loss - Mux to Demux (Link)
2 / 2.6 / 3.7 / 5
dB
Min. Isolation - Adjacent Channel
30 / 30 / 30 / 30
dB
Non-Adjacent Channel
40 / 40 / 40 / 40
dB
Min. Isolation - Upgrade Channel
10 / 10 / 10 / 10
dB
Max. Channel Flatness
0.3
dB
Min. Return Loss
50
dB
Min. Extinction Ratio@23℃
18
dB
Max. Wavelength Thermal Stability
0.003
nm/℃
Max.Insertion Loss Thermal Stability
0.005
dB/℃
Max. Power Handling (CW)
500
mW
Operating temperature
0~+70
℃
Storage temperature
-40~+85
℃
Package Options
100 x 80 x 10 / 120 x 80 x 18 / 140 x 140 x 10
mm
Configuration and ordering notes
Confirm wavelength pair or channel plan, bandwidth / spacing, PM or SM fiber, power level, port configuration, package, connector and pigtail requirements.
Final wavelength, power, fiber, connector, pigtail and package options are confirmed against the selected configuration before quotation.
Review the specification table and confirm wavelength, power, fiber, connector and package for the required configuration.

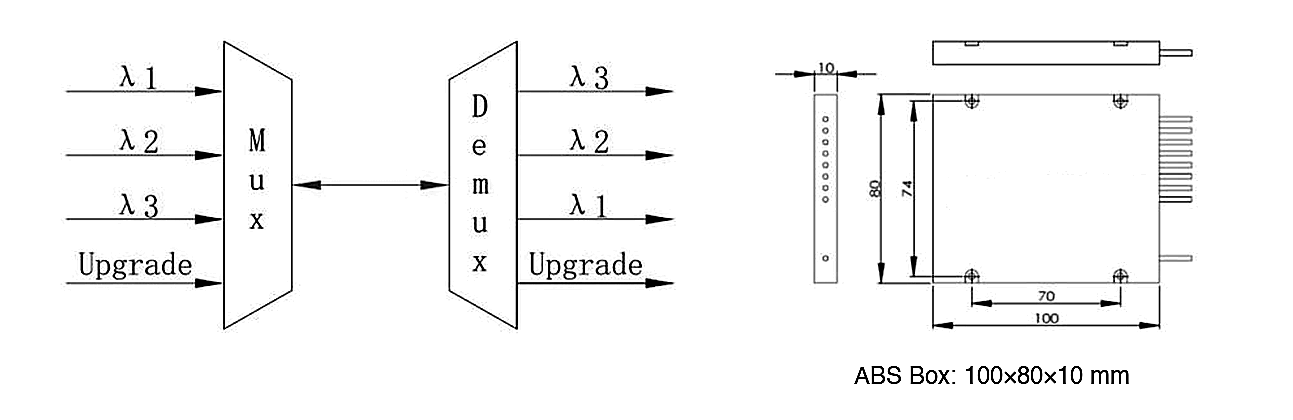

Package Drawing
Need an exact WDM or filter configuration?
A quotation review can begin with the application, quantity and available channel or fiber information. Engineering can clarify open configuration details.
