1550nm 500mW Mini Fiber Reflector (Fiber Mirror)
Miniature fiber reflector for optical-link diagnostics and test systems. Ordering information lists dia. 2.5 x 20 mm and dia. 1.8 x 10 mm packages; confirm the selected configuration with engineering.
Technical Specifications
Parameter
Specification
Unit
Center Wavelength
1550, 1310
nm
Operating Bandwidth
±30
nm
Reflectance Loss
<= 0.4
dB
Reflectivity
> 98
%
Max. Polarization Dependent Loss (PDL)
0.05
dB
Max. Optical Power (CW)
500
mW
Fiber Type
Corning SMF-28e+ or PM Panda Fiber
-
Operating Temperature
-40 to +85
°C
Package Dimensions
dia. 2.5 x 20 mm / dia. 1.8 x 10 mm
mm
Technical Datasheet Note
Available with both single-mode and PM Panda fibers. Connectors add 0.3 dB loss.
Available with both single-mode and PM Panda fibers. Connectors add 0.3 dB loss.
Configuration and ordering notes
Configuration parameters include operating wavelength (1550nm or 1310nm) and fiber type (standard SMF-28e+ or PM Panda).
Selection Guidance: Review footprint reduction, splice elimination and optical loss budget in our Mini & Hybrid Devices for CPO & Transceivers Guide ↗ or Mini vs Standard Isolator Guide ↗.
Key Applications
OTDR line monitoring and end-of-line reflection markers; Fiber optic sensors; Double-pass optical links; Laser cavity mirror.

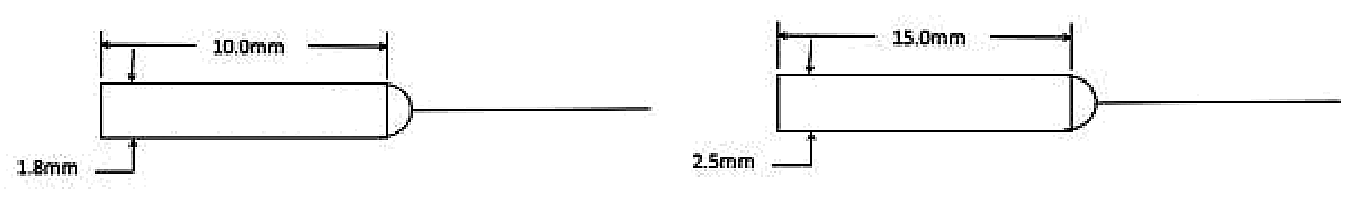

Package Drawing
