980-1080nm 10W Dual Stage TGG Optical Isolator
Dual-stage TGG in-line optical isolator for 980-1080 nm systems where substantially higher isolation is required in fiber amplifiers, MOPA fiber lasers and test setups.
Technical Specifications
Parameter
Specification
Unit
Stage
Dual stage
-
Center Wavelength
1064, 1030, 980 or specified
nm
Operating Wavelength Range
±5
nm
Typical Peak Isolation @ 23°C
65
dB
Min. Isolation @ 23°C
50
dB
Typical Insertion Loss @ 23°C
0.8
dB
Max. Insertion Loss @ 23°C
1.2
dB
Min. Extinction Ratio @ 23°C (PM fiber)
20
dB
Max. PDL @ 23°C (SM fiber)
0.15
dB
Min. Return Loss (Input / Output)
45
dB
Max. Average Power
0.5, 1, 5, 10, 20 or specified
W
Max. Pulse Peak Power
10 or specified
kW
Package Dimensions
144 x 28 x 26 mm (Dual Stage)
mm
Max. Tensile Load
5
N
Operating Temperature
+10 to +50
°C
Storage Temperature
0 to +60
°C
Configuration and ordering notes
Confirm center wavelength, optical power, fiber type, package, connector and pigtail requirements. If your target configuration is not an exact table value, submit it for Engineering Review.
Final wavelength, power, fiber, connector, pigtail and package options are confirmed against the selected configuration before quotation.
Review the specification table and confirm wavelength, power, fiber, connector and package for the required configuration.

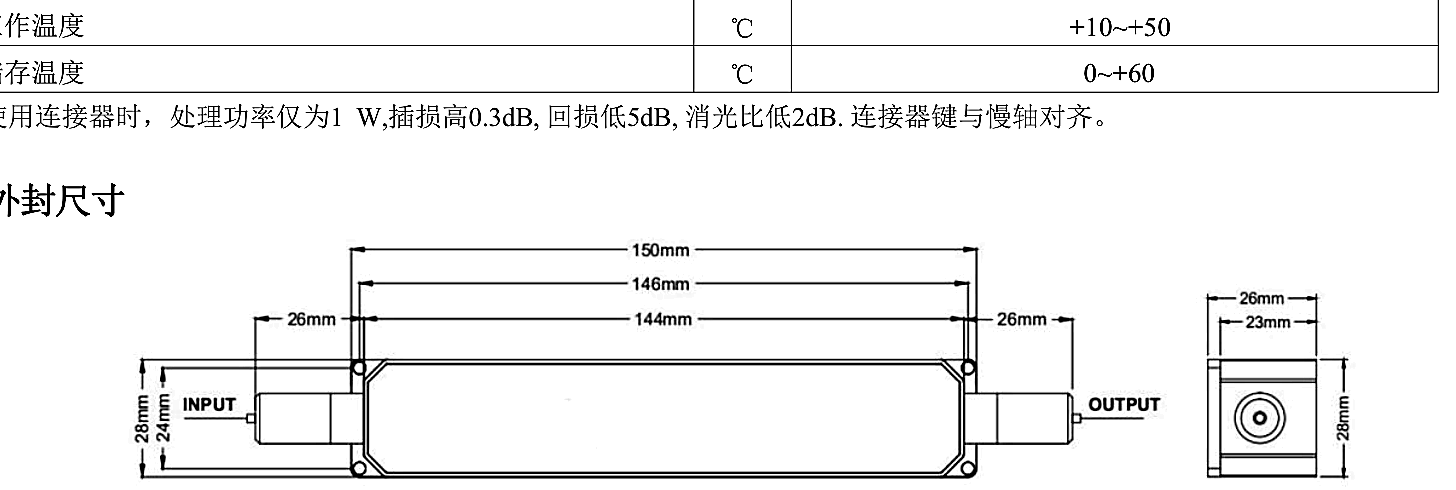

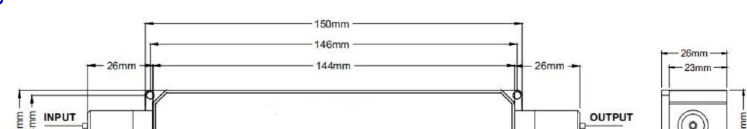

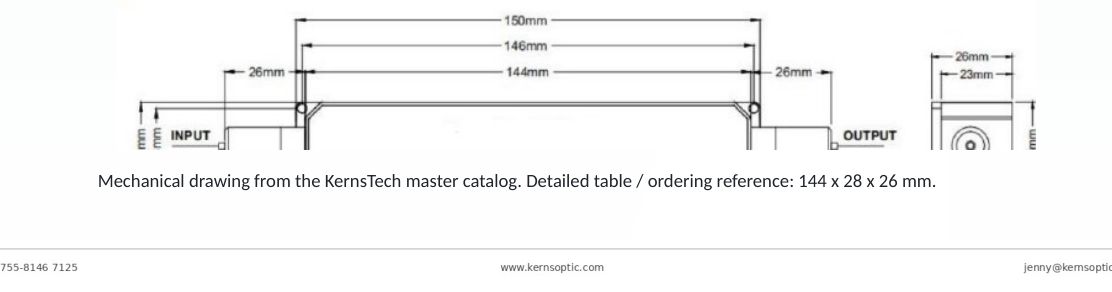

Package Drawing
