20W High Power PM Fused WDM
High-power polarization-maintaining fused WDM handling up to 20W CW and 10 kW pulse peak power, designed for high-power coherent communications, EDFA pump combining, and precision optical sensing.
Technical Specifications
Parameter
Specification
Unit
Wavelength Pairs
980/1064, 980/1550, 1064/1550, 793/2000, 1550/2000
nm
Operating Bandwidth
±15
nm
Max. Insertion Loss (Signal Channel)
0.7 - 0.8
dB
Max. Insertion Loss (Pump Channel)
0.7 - 0.8
dB
Min. Extinction Ratio
18 - 20
dB
Min. Isolation
13 - 18
dB
Min. Directionality
55
dB
Min. Return Loss
50
dB
Max. Optical Power (CW)
5, 10, 20 or specified
W
Max. ns Pulse Peak Power
10
kW
Fiber Type
PM Panda fiber
-
Package Dimensions
70 x 12 x 8 mm
mm
Operating Temperature
-5 to +75
°C
Storage Temperature
-40 to +85
°C
Technical Datasheet Note
With connectors, handling power is limited to 1W; IL increases by 0.3 dB, RL decreases by 5 dB and ER decreases by 2 dB.
With connectors, handling power is limited to 1W; IL increases by 0.3 dB, RL decreases by 5 dB and ER decreases by 2 dB.
Configuration and ordering notes
Selected when both polarization extinction (≥18-20 dB) and high CW/pulse optical power handling (up to 20W / 10 kW peak) are needed in a rugged aluminum enclosure.
Selection Guidance: Compare TFF vs FBT multiplexing and ASE suppression in our WDM & Optical Filters for EDFA Guide ↗ or PM WDM Selection Guide ↗.
Key Applications
Test instruments; Coherent communication systems; Erbium-doped fiber amplifiers; Fiber sensing.

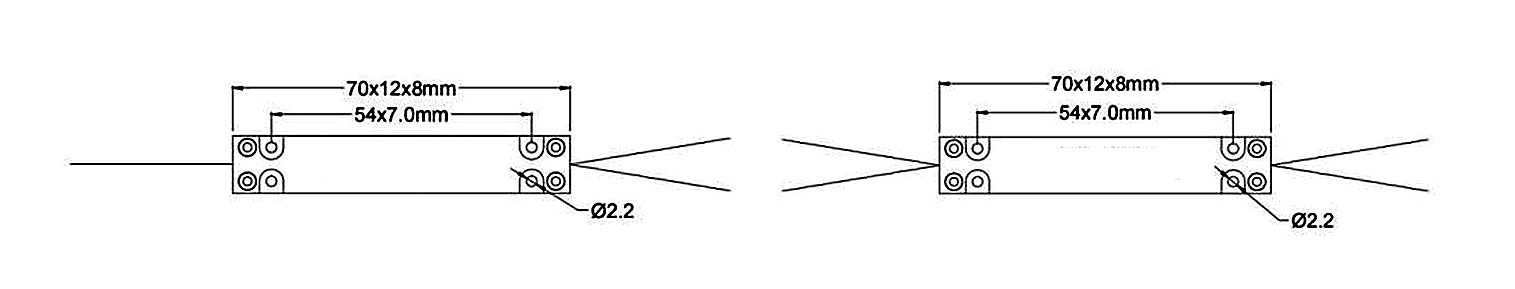

Package Drawing
Need an exact configuration?
A quotation review can begin with the application, quantity and available component information. Wavelength, optical power, fiber and termination details can be clarified with engineering.
