1310/1550nm High Isolation Fused WDM
KernsOptic 1310/1550nm High Isolation Fused WDM for fiber-optic systems.
Technical Specifications
Parameter
Specification
Unit
Type
Normal Size SWDM / Mini Size SWDM / High Isolation HWDM
-
Wavelength
1310 / 1550
nm
Bandwidth
±15
nm
Grade
Normal: P/A; Mini: P/A; HWDM: P
-
Insertion Loss
Normal ≤0.2/≤0.3; Mini ≤0.25/≤0.35; HWDM ≤0.5
dB
Isolation
Normal ≥17/≥16; Mini ≥17/≥16; HWDM ≥40
dB
Polarization Dependent Loss
Normal ≤0.05/≤0.10; Mini ≤0.08/≤0.12; HWDM ≤0.10
dB
Return Loss
≥55
dB
Directionality
≥55
dB
Package Dimensions
dia. 3.0 x 40 mm / dia. 3.0 x 54 mm / dia. 2.4 x 30 mm
-
Operating Temperature
0 to +70
°C
Storage Temperature
-40 to +85
°C
Port Type
1x2 or 2x2
-
Package Options
dia. 3.0x54 / 3.0x40 / 3.0x60 / 2.4x30 / 90x20x9.5 / 100x80x10
mm
Configuration and ordering notes
Confirm wavelength pair or channel plan, bandwidth / spacing, PM or SM fiber, power level, port configuration, package, connector and pigtail requirements.
Final wavelength, power, fiber, connector, pigtail and package options are confirmed against the selected configuration before quotation.
Review the specification table and confirm wavelength, power, fiber, connector and package for the required configuration.

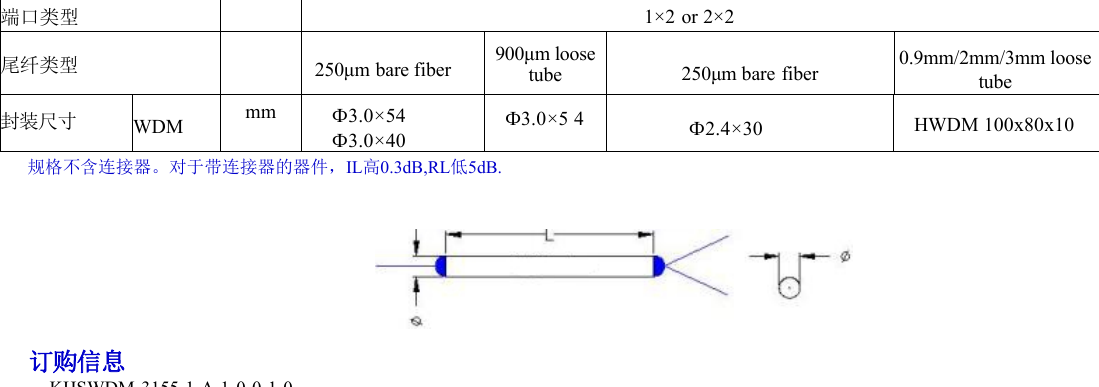

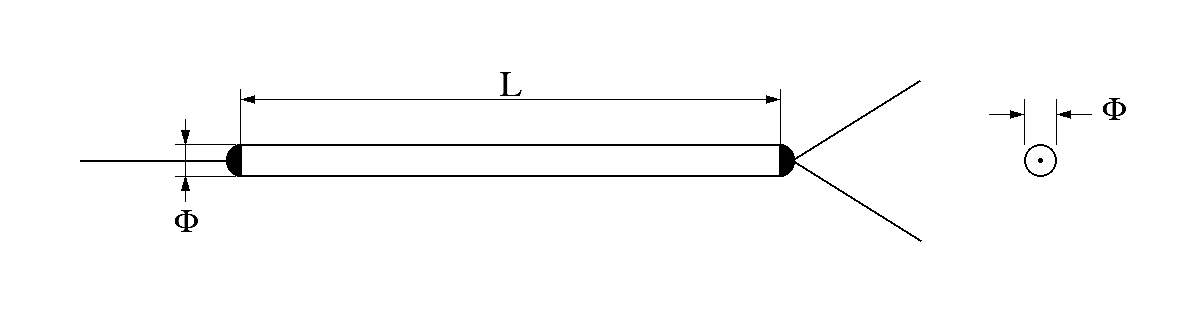

Package Drawing
Need an exact WDM or filter configuration?
A quotation review can begin with the application, quantity and available channel or fiber information. Engineering can clarify open configuration details.
