532nm / 633nm Fiber Optic Polarizer
In-line fiber optic polarizer for visible-wavelength communication, test, sensing and R&D optical paths, supporting SM-to-SM, SM-to-PM and PM-to-PM fiber configurations.
Technical Specifications
Parameter
Specification
Unit
Center Wavelength
532 / 633
nm
Operating Wavelength Range
±10
nm
Typ. Insertion Loss @ 23°C
1.3
dB
Max. Insertion Loss @ 23°C
1.5
dB
Min. Return Loss
50
dB
Typ. Extinction Ratio @ 23°C
24
dB
Min. Extinction Ratio @ 23°C
22
dB
Input / Output Fiber
SM->SM or SM->PM or PM->PM
-
Max. Optical Power (CW)
300
mW
Max. Tensile Load
5
N
Package Dimensions
33 x 17 x 11.5 mm
mm
Operating Temperature
-5 to +70
°C
Storage Temperature
-40 to +85
°C
Technical Datasheet Note
For SM->PM and PM->PM configurations, output polarization is aligned to the slow axis by default. Fast axis alignment available on request.
For SM->PM and PM->PM configurations, output polarization is aligned to the slow axis by default. Fast axis alignment available on request.
Configuration and ordering notes
Configuration parameters include wavelength (532nm green or 633nm red), fiber configuration (SM-SM, SM-PM, PM-PM), jacket type (bare fiber or 900µm loose tube) and connectors.
Selection Guidance: Review extinction ratio formulas, axis alignment, and splicing tolerances in our PM Fiber Components & Extinction Ratio Guide ↗ or Fiber Polarizer Selection Guide ↗.
Key Applications
Visible laser diode clean-up, fluorescence microscopy, biomedical flow cytometry, visible interferometric sensing, and quantum optics experiments.

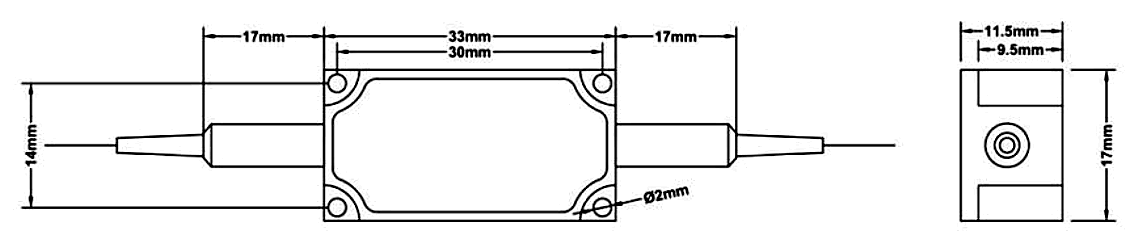

Package Drawing
