1064-2050nm 300mW PM Faraday Rotator
Non-reciprocal Faraday rotator for 1064nm to 2050nm providing precise 45° or 90° polarization rotation regardless of propagation direction, critical for fiber interferometers and sensors.
Technical Specifications
Parameter
Specification
Unit
Center Wavelength
1064, 1310, 1480, 1550, 1950, 2000, 2050
nm
Operating Bandwidth
±5 (1064), ±20 (1310-1550), ±15 (1950-2050)
nm
Rotation Angle
45° or 90°
deg
Typ. Insertion Loss
0.5
dB
Max. Insertion Loss
0.8
dB
Min. Extinction Ratio
≥ 20
dB
Min. Return Loss
≥ 50
dB
Max. Optical Power (CW)
300
mW
Max. Tensile Load
5
N
Fiber Type
PM Panda Fiber
-
Package Dimensions
dia. 5.5 x 35 mm
-
Operating Temperature
-5 to +70
°C
Technical Datasheet Note
Rotation angle is non-reciprocal: forward and backward passes undergo the same directional angular shift. Standard rotation angle is 45° ±1° at 23°C.
Rotation angle is non-reciprocal: forward and backward passes undergo the same directional angular shift. Standard rotation angle is 45° ±1° at 23°C.
Configuration and ordering notes
Configuration parameters include center wavelength (1064, 1310, 1550, or 2000nm), required rotation angle (45° or 90°), fiber jacket type, and connector termination.
Selection Guidance: Need component selection assistance? Compare specifications and architectures across our full .
Key Applications
Fiber optic gyroscopes, fiber Michelson and Mach-Zehnder interferometers, laser polarization stabilization, and coherent Doppler LIDAR systems.

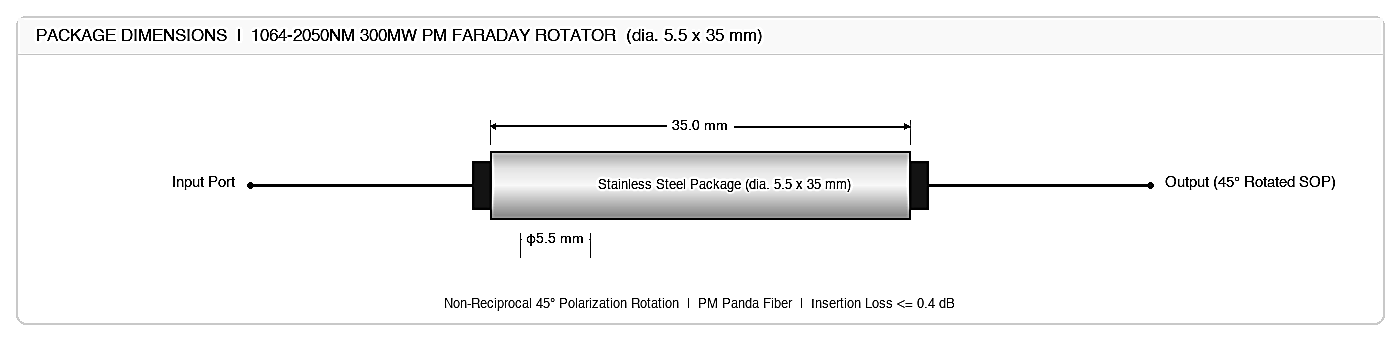

Package Drawing
Need an exact configuration?
A quotation review can begin with the application, quantity and available component information. Wavelength, optical power, fiber and termination details can be clarified with engineering.
