PM Fiber Optical Patch Cord / Cable Jumper
PM fiber patch cord with Panda fiber and connectorized ends. The datasheet lists a minimum extinction ratio of 23 dB for the 1550/1310 and 1060/980 nm groups; ratings vary by wavelength. Confirm connector, axis alignment and length for the assembly.
Technical Specifications
100% individually tested for IL, RL, and ER with test report included. Custom lengths (0.5m to 100m) and armored jackets available upon request.
Configuration and ordering notes
Configuration parameters include fiber type, connectors at Port 1 and Port 2, cable length in meters, and jacket diameter (900um loose tube for internal trays, 2.0mm/3.0mm PVC/LSZH for benchtop patch).
Key Applications
Interconnecting PM optical components; Fiber laser seed and amplifier coupling; Coherent test equipment; Quantum optics laboratories.

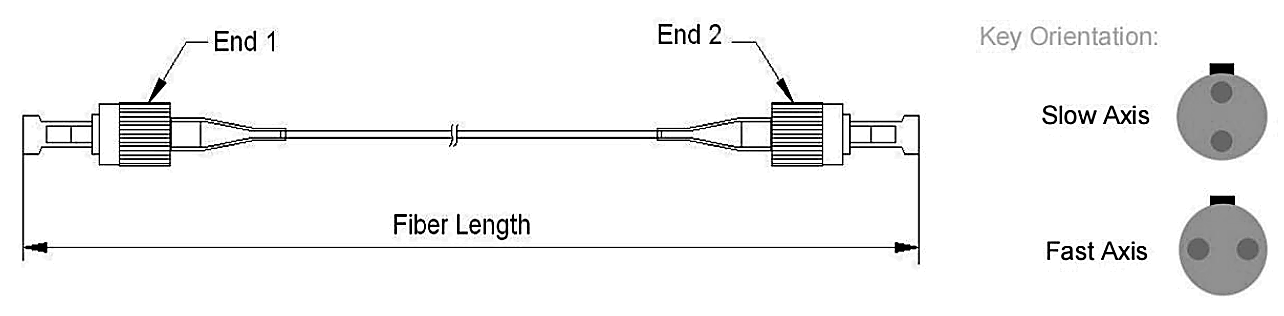

Package Drawing
Need an exact configuration?
A quotation review can begin with the application, quantity and available component information. Wavelength, optical power, fiber and termination details can be clarified with engineering.
