Mini Size PM Coupler + WDM 2-in-1 Hybrid
Miniature 2-in-1 hybrid integrating a PM tap coupler and a WDM filter in an ultra-compact dia. 3.2 x 35 mm / dia. 3.0 x 30 mm package. Designed for compact optical amplifier input or output sub-assemblies, providing simultaneous pump/signal combining and calibrated signal power tapping without extra splices.
Technical Specifications
With connectors, IL increases by 0.3 dB, RL decreases by 5 dB and ER decreases by 2 dB. Specify transmission/reflection wavelength pair and tap ratio with quotation.
Configuration and ordering notes
Tap monitoring and wavelength combining share one package. The tap ratio is reviewed against the monitoring path and optical power budget.
Key Applications
Micro optical amplifier line cards; Optical power feedback loops; Compact transponders & transceivers; Fiber sensing pump-signal routing.

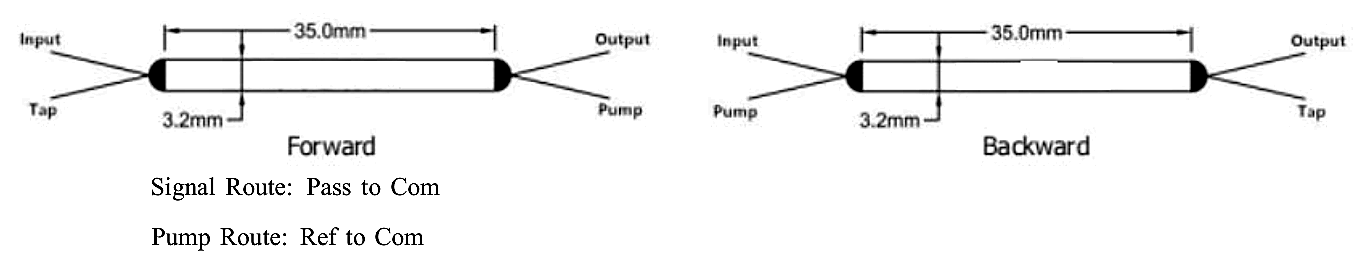

Package Drawing
Need an exact configuration?
A quotation review can begin with the application, quantity and available component information. Wavelength, optical power, fiber and termination details can be clarified with engineering.
