Mini Size PM Optical Isolator + Tap + WDM 3-in-1 Hybrid
Miniature multifunction 3-in-1 hybrid integrating a PM optical isolator, tap coupler, and WDM filter into a single micro package (dia. 3.2 x 35 mm / dia. 3.0 x 30 mm). Provides pump-signal combining (980/1550 nm or 980/1064 nm), reverse isolation protection (up to 45 dB), and calibrated signal power tapping, replacing 3 separate components.
Technical Specifications
Single / Dual values are shown in the same order. With connectors, IL increases by 0.3 dB, RL decreases by 5 dB and ER decreases by 2 dB. Custom configurations, tap ratios, and pigtail lengths are confirmed in quotation.
Configuration and ordering notes
Optical isolation, wavelength combining and monitoring share a compact package. Port configuration and optical characteristics are listed in the specification table.
Key Applications
Ultra-compact EDFA modules; Fiber laser seed amplifier stages; Aerospace and defense optical transceivers; Multi-channel coherent optical systems.

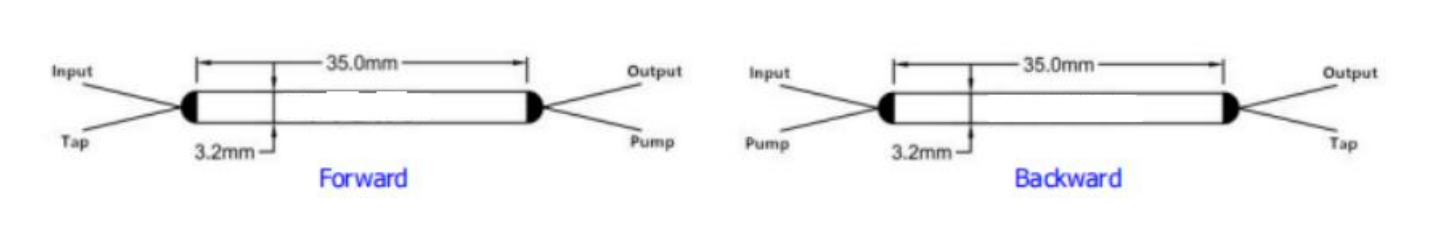

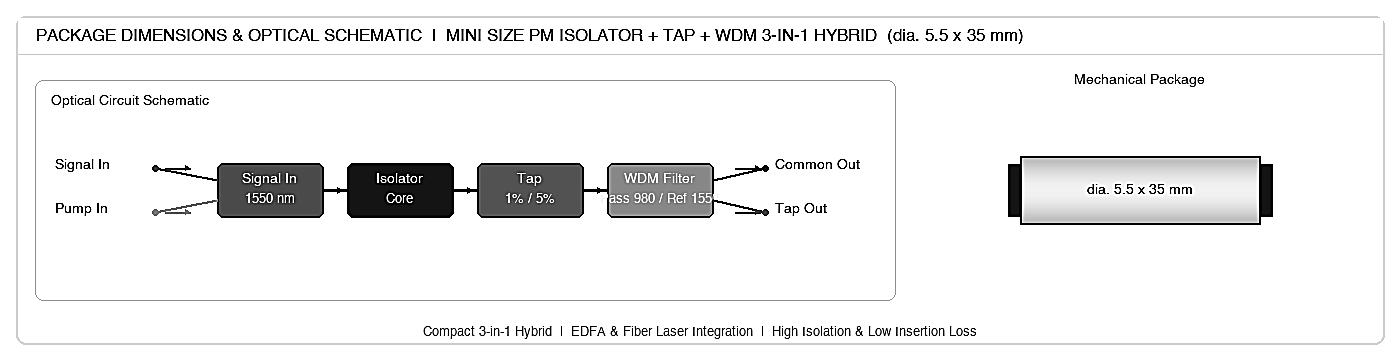

Package Drawing
