1064-2050nm PM Tap + Optical Isolator 2-in-1 Hybrid
Compact 2-in-1 optical hybrid combining a polarization-maintaining power tap and optical isolator to deliver simultaneous backward protection and real-time optical power monitoring.
Technical Specifications
Parameter
Specification
Unit
Center Wavelength
1064, 1310, 1550, 2000
nm
Operating Bandwidth
±5 (1064), ±15 (1310-2000)
nm
Grade Configuration
Single Stage or Dual Stage
-
Peak Isolation
38 (Single Stage), 50 (Dual Stage)
dB
Min. Isolation @ 23°C
28 (Single Stage), 45 (Dual Stage)
dB
Typ. Insertion Loss
1.0 (Single Stage), 1.3 (Dual Stage)
dB
Tap Ratio Options
1%, 2%, 5%, 10%
-
Min. Extinction Ratio
≥ 20
dB
Min. Return Loss
≥ 50
dB
Max. Optical Power (CW)
300
mW
Package Dimensions
dia. 5.5 x 35 mm
-
Operating Temperature
-5 to +70
°C
Technical Datasheet Note
Low excess loss micro-optic design ensures tap port accurately reflects main line power with temperature stability < 0.05 dB across operating range.
Low excess loss micro-optic design ensures tap port accurately reflects main line power with temperature stability < 0.05 dB across operating range.
Configuration and ordering notes
Configuration parameters include operating wavelength, isolation grade, tap split ratio, and fiber lead jacket (250µm bare fiber vs 900µm loose tube).
Selection Guidance: Review footprint reduction, splice elimination and optical loss budget in our Mini & Hybrid Devices for CPO & Transceivers Guide ↗ or Mini vs Standard Isolator Guide ↗.
Key Applications
Seed laser protection and power monitoring, MOPA fiber laser input monitoring, optical coherence tomography, and sensor telemetry.

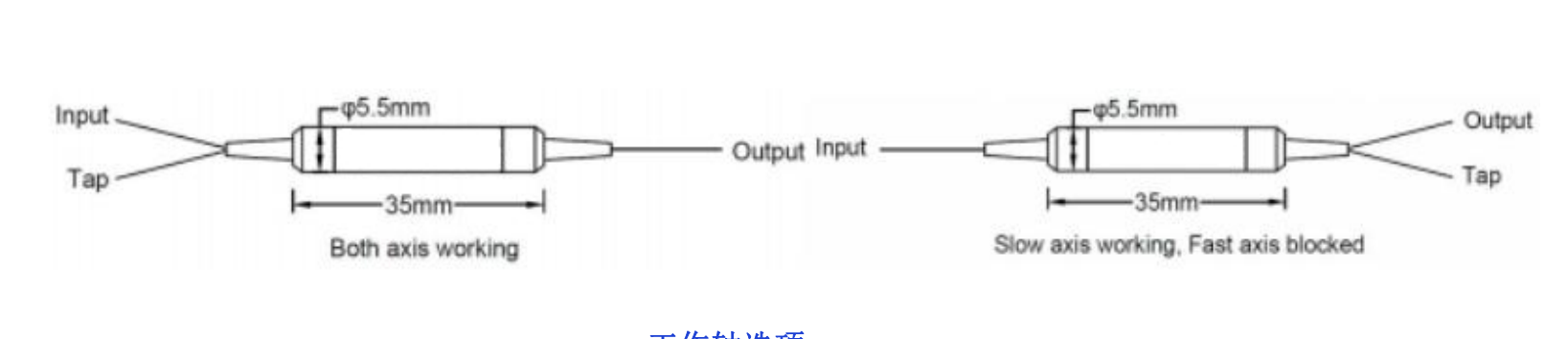

Package Drawing
