TGG Optical Isolator + Tap + WDM 3-in-1 Hybrid (980/1030nm, 980/1064nm)
High-power 3-in-1 multifunction device integrating TGG optical isolator, 980nm pump WDM, and power tap monitor into a monolithic housing. Designed for Ytterbium-doped fiber amplifiers (YDFA) to isolate the seed, inject 980nm pump power, and tap 1% of seed power with minimal optical loss.
Technical Specifications
Replaces three separate components (Isolator, WDM, Tap Coupler) and saves 4 fiber splices, drastically improving optical SNR and reliability.
Configuration and ordering notes
Configuration parameters include signal wavelength (1030nm or 1064nm), pump power level, and whether pump fiber is single-mode or multimode.
Key Applications
Ytterbium fiber laser pre-amplifiers; Ultrafast fiber chirped pulse amplifiers; Coherent seed injection modules; Industrial laser systems.

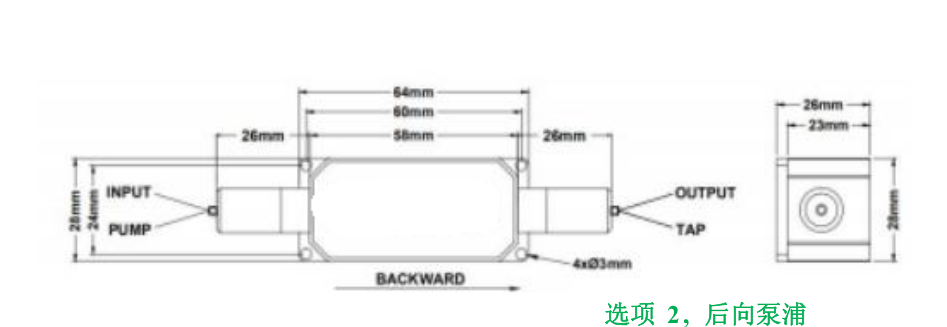

Package Drawing
Need an exact configuration?
A quotation review can begin with the application, quantity and available component information. Wavelength, optical power, fiber and termination details can be clarified with engineering.
