780-1080nm TGG High Power Tap + Optical Isolator + WDM 3-in-1 Hybrid
High-power 3-in-1 optical hybrid integrating a high-power TGG optical isolator, tap coupler, and WDM in a single thermally optimized package handling up to 20W optical power.
Technical Specifications
Parameter
Specification
Unit
Center Wavelength
780, 850, 980, 1030, 1064, 1080
nm
Operating Wavelength Range
±5
nm
Maximum Excess Loss
≤ 1.2
dB
Min. Isolation @ 23°C
≥ 25
dB
Signal Tap Ratio Options
1±0.2%, 2±0.4%, 5±1%, 10±2%
-
WDM Isolation (Signal to Pump)
≥ 25
dB
Min. Extinction Ratio
≥ 20
dB
Min. Return Loss
≥ 50
dB
Max. Optical Power (CW)
10 to 20
W
Max. Tensile Load
5
N
Package Dimensions
58 x 28 x 26 mm
mm
Operating Temperature
+10 to +50
°C
Technical Datasheet Note
Designed for high-power fiber laser amplifiers requiring simultaneous high optical isolation, pump light multiplexing, and forward/backward laser power monitoring.
Designed for high-power fiber laser amplifiers requiring simultaneous high optical isolation, pump light multiplexing, and forward/backward laser power monitoring.
Configuration and ordering notes
Configuration parameters include operating power level (10W vs 20W CW), signal wavelength (1064nm or 1030nm), pump wavelength (980nm), and tap percentage.
Selection Guidance: Compare combiner architectures and fiber matching in our Pump Combiner Selection Guide ↗ or N×1 vs (6+1)×1 Architecture Guide ↗.
Key Applications
High-power fiber laser MOPA systems, industrial laser welding/cutting seed modules, and high-power Raman fiber lasers.

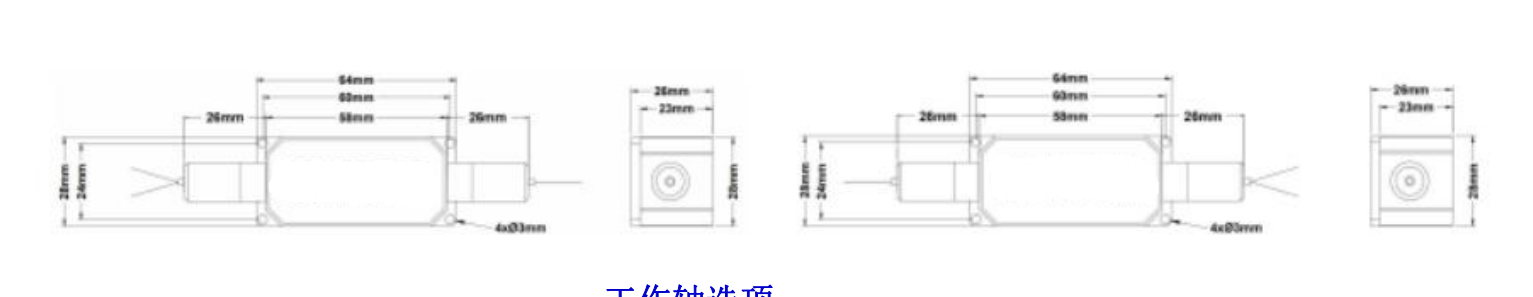

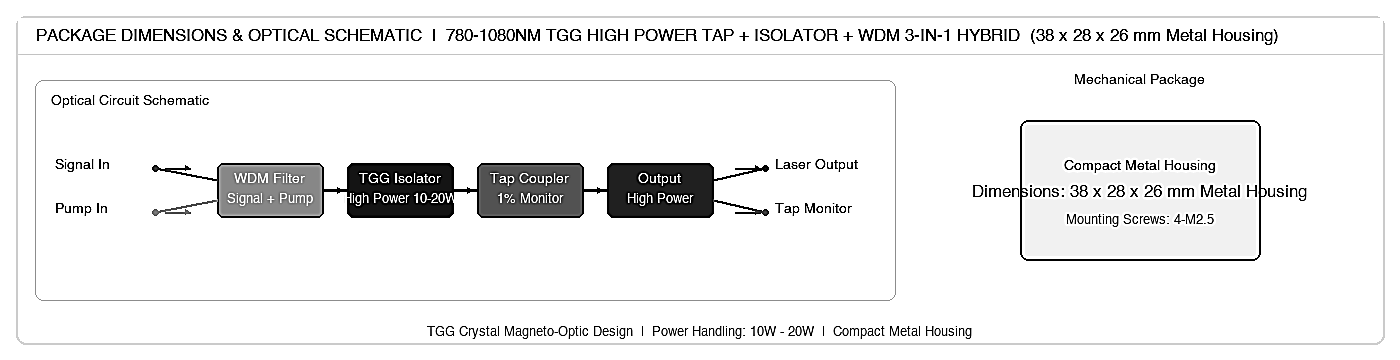

Package Drawing
Need an exact configuration?
A quotation review can begin with the application, quantity and available component information. Wavelength, optical power, fiber and termination details can be clarified with engineering.
