1xN Multimode Fused Fiber Coupler (1x2 to 1x32)
Multimode Fused Biconical Taper (FBT) Fiber Coupler available in 1x2, 1x4, 1x8, 1x16, and 1x32 port configurations for 850nm and 1310nm multimode systems. Built with 50/125um or 62.5/125um fiber for high optical transmission efficiency and uniform power distribution.
Technical Specifications
Coupling ratio and insertion loss tested under equilibrium mode distribution (EMD). Connectors add 0.3 dB insertion loss.
Configuration and ordering notes
Configuration parameters include multimode fiber core size (50/125um or 62.5/125um), port count, operating wavelength, and connector type (SC, LC, ST).
Key Applications
Local area networks (LAN); Multi-mode fiber sensor arrays; Industrial plant automation; Data center multimode distribution.

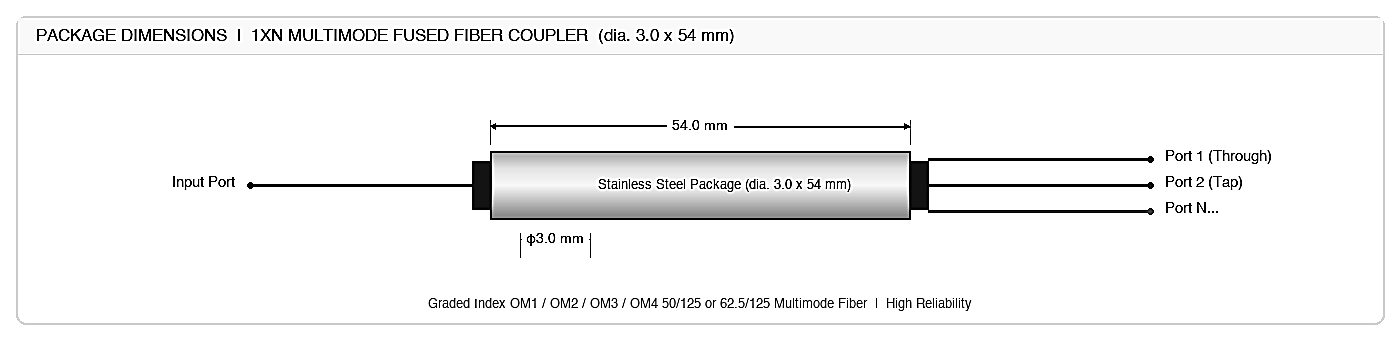

Package Drawing
Package dimensions depend on the configuration. The catalog, ordering information or drawing show different package references; engineering must confirm the final mechanical outline before ordering.
Need an exact configuration?
A quotation review can begin with the application, quantity and available component information. Wavelength, optical power, fiber and termination details can be clarified with engineering.
