PM Fused WDM FPWDM
KernsOptic PM Fused WDM FPWDM for EDFA; Pump Laser; Optical Cutting; Research.
Technical Specifications
Parameter
Specification
Unit
Wavelength Pairs
980/1550; 1480/1550; 980/1064; 980/1030
nm
Operating Wavelength
980±10 / 1550±15; source shows 14800±5 / 1550±5; 980±5 / 1064±5; 980±5 / 1030±5
nm
Signal Insertion Loss
≤0.7 / ≤0.7 / ≤0.8 / ≤0.8
dB
Pump Insertion Loss
≤0.7 / ≤0.7 / ≤0.8 / ≤0.8
dB
Isolation
≥18 / ≥13 / ≥13 / ≥13
dB
Extinction Ratio
≥18 / ≥17 / ≥17 / ≥17
dB
Directionality
≥55
dB
Package Dimensions
dia. 3.0 x 54 mm / dia. 3.0 x 70 mm / 90 x 20 x 9.5 mm
-
Operating Temperature
-40 to +85
°C
Configuration
1x2
-
Fiber Length
0.8 m; others on request
m
Fiber Type
Panda Fiber
-
Package Options
dia. 3.0x54 / 3.0x60 / 3.0x70 / 90x20x9.5
mm
Configuration and ordering notes
Confirm wavelength pair or channel plan, bandwidth / spacing, PM or SM fiber, power level, port configuration, package, connector and pigtail requirements.
Final wavelength, power, fiber, connector, pigtail and package options are confirmed against the selected configuration before quotation.
Review the specification table and confirm wavelength, power, fiber, connector and package for the required configuration.

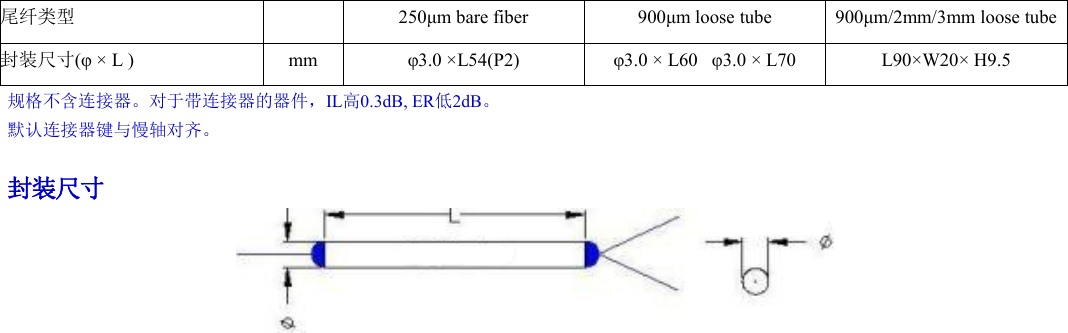

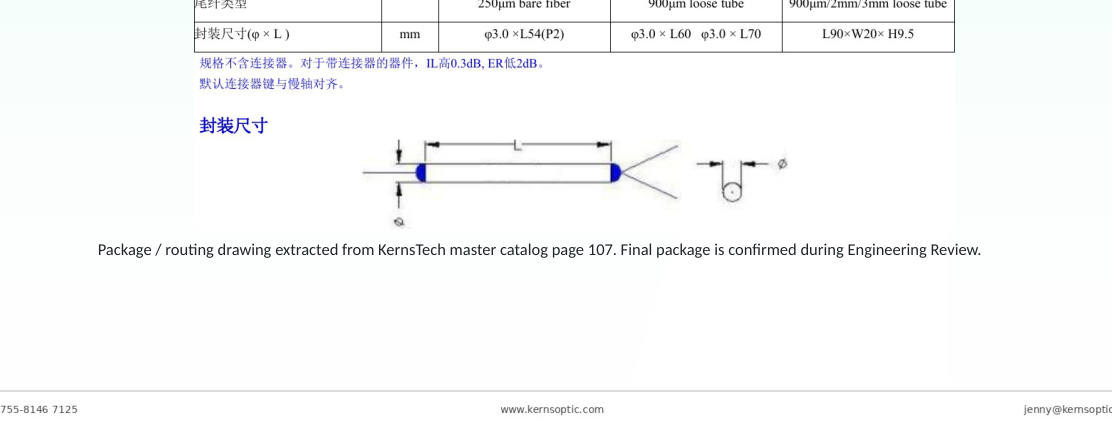

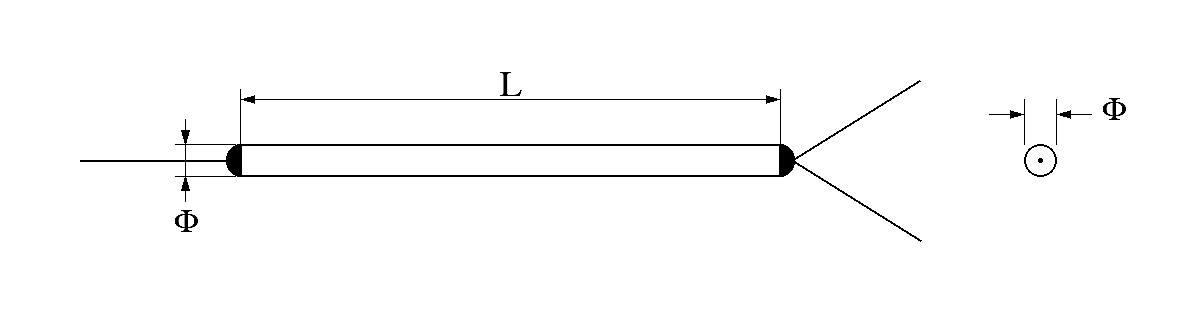

Package Drawing
Need an exact WDM or filter configuration?
A quotation review can begin with the application, quantity and available channel or fiber information. Engineering can clarify open configuration details.
