PM High Power Optical Isolator + Optical Filter Hybrid
High-Power Polarization-Maintaining Optical Isolator and Optical Bandpass Filter integrated hybrid handling up to 20W optical power. Simultaneously blocks destructive back reflections (>30 dB isolation) and filters out ASE noise and Raman scattering in high-power PM fiber amplifiers.
Technical Specifications
Parameter
Specification
Unit
Center Wavelength
1064, 1030, 980
nm
Operating Bandwidth
±5
nm
Filter Passband Width (@ -0.5 dB)
2.0, 5.0, 8.0, 15.0 or specified
nm
Min. Isolation @ 23°C
30 (Single Stage) / 45 (Dual Stage)
dB
Max. Insertion Loss @ 23°C
1.4 (Single Stage), 1.8 (Dual Stage)
dB
Min. Extinction Ratio @ 23°C
20 (Both axes) / 22 (Fast axis blocked)
dB
Min. Return Loss
50
dB
Max. Optical Power (CW)
10 / 20
W
Max. Peak Power for ns Pulse
10
kW
Fiber Type
PM980, PM1060, LMA-GDF-10/125 Panda Fiber
-
Operating Temperature
+10 to +50
°C
Package Dimensions
82 x 45 x 44 mm
mm
Technical Datasheet Note
Replaces separate isolator and bandpass filter, saving ~0.4 dB total insertion loss. 20W power requires heatsinking.
Replaces separate isolator and bandpass filter, saving ~0.4 dB total insertion loss. 20W power requires heatsinking.
Configuration and ordering notes
Configuration parameters include center wavelength, filter bandwidth (2nm or 5nm), and fiber core diameter matching the amplifier stage.
Selection Guidance: Review footprint reduction, splice elimination and optical loss budget in our Mini & Hybrid Devices for CPO & Transceivers Guide ↗ or Mini vs Standard Isolator Guide ↗.
Key Applications
Pulsed master oscillator power amplifier (MOPA) lasers; Coherent LIDAR preamplifiers; Frequency conversion & harmonic generation.

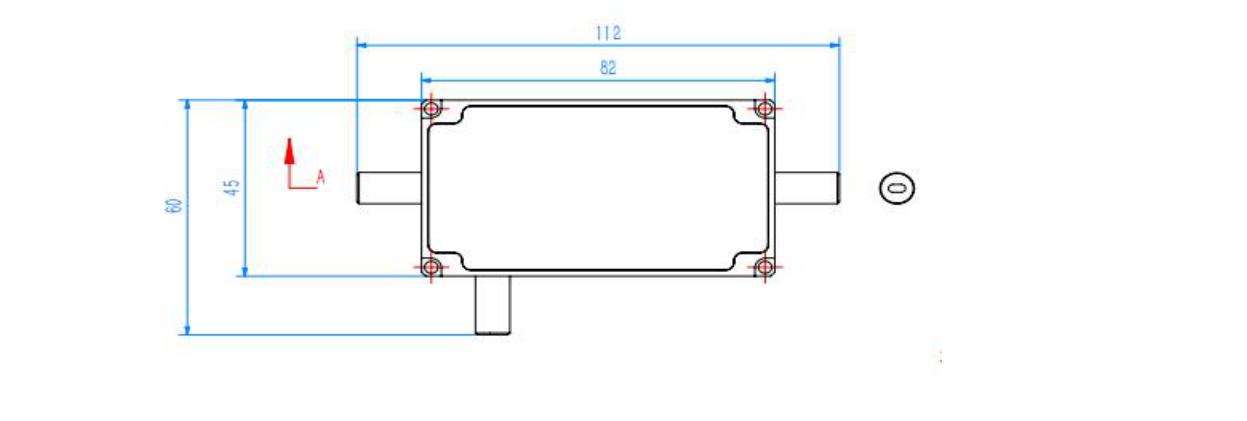

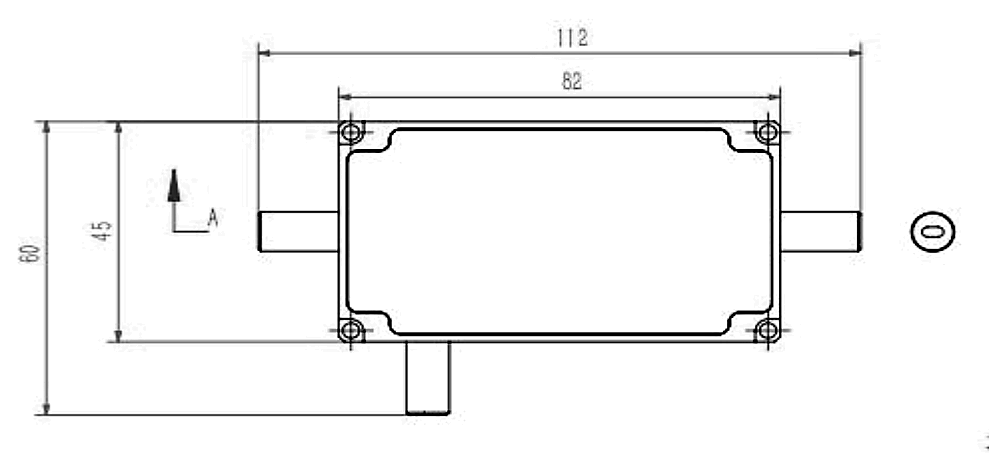

Package Drawing
Need an exact configuration?
A quotation review can begin with the application, quantity and available component information. Wavelength, optical power, fiber and termination details can be clarified with engineering.
