TGG High Power Optical Isolator + WDM Hybrid 980/1030nm 980/1064nm
Compact multi-function hybrid combining a TGG high-power optical isolator and wavelength division multiplexer in a single 58 x 28 x 26 mm package, protecting laser seed sources while multiplexing pump and signal wavelengths.
Technical Specifications
Parameter
Specification
Unit
Signal Channel Wavelength Range
1064±5, 1030±5
nm
Signal Channel Max. Insertion Loss @ 23°C
1.2
dB
Signal Channel Min. Isolation (Common to Pass)
30
dB
Reflection Channel Wavelength Range
960 - 990
nm
Reflection Channel Max. Insertion Loss @ 23°C
0.8
dB
Reflection Channel Min. Isolation (Common to Reflect)
15
dB
Min. Extinction Ratio @ 23°C (PM fiber, sig/pump)
20 / 18
dB
Max. PDL @ 23°C (SM fiber)
0.15
dB
Min. Return Loss (Input / Output)
50
dB
Max. Average Optical Power
1, 2, 5, 10, 20 or Specified
W
Max. ns Pulse Peak Power
10 or Specified
kW
Max. Tensile Load
5
N
Package Dimensions
58 x 28 x 26 mm
mm
Operating Temperature
+10 to +50
°C
Storage Temperature
0 to +60
°C
Technical Datasheet Note
Integrates optical isolation and pump/signal WDM into a single package, significantly reducing insertion loss, footprint, and splice count in compact fiber laser seed and amplifier modules.
Integrates optical isolation and pump/signal WDM into a single package, significantly reducing insertion loss, footprint, and splice count in compact fiber laser seed and amplifier modules.
Configuration and ordering notes
This hybrid combines pump injection and reverse isolation. Signal wavelength, pump wavelength and fiber configuration are reviewed for the amplifier stage.
Selection Guidance: Review footprint reduction, splice elimination and optical loss budget in our Mini & Hybrid Devices for CPO & Transceivers Guide ↗ or Mini vs Standard Isolator Guide ↗.
Key Applications
Fiber laser seed sources; Pre-amplifier modules; Compact MOPA systems; Precision laser instrumentation.

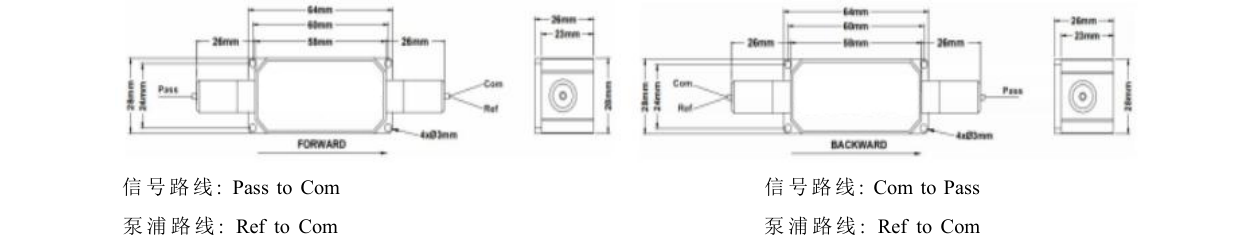

Package Drawing
Need an exact configuration?
A quotation review can begin with the application, quantity and available component information. Wavelength, optical power, fiber and termination details can be clarified with engineering.
