980-1080nm TGG Optical Isolator + Tap + Optical Filter 3-in-1 Hybrid
Multi-functional 3-in-1 optical hybrid combining high-isolation TGG optical isolator, power monitoring tap (1%, 2%, 5%), and narrow bandpass optical filter into a single compact housing. Eliminates 2 fiber splices, minimizes optical loss, and enables simultaneous ASE suppression, back-reflection protection, and power tapping.
Technical Specifications
3-in-1 integration replaces three discrete components and two splices, improving system reliability by eliminating external splice failure modes. 20W models require heatsink cooling.
Configuration and ordering notes
Configuration parameters include tap ratio (1% standard for photodiode power monitoring), filter passband width, and main signal fiber core size.
Key Applications
Fiber laser master oscillator power amplifier (MOPA) stages; High-power laser seed monitoring; Precision LIDAR transmitters; Medical laser modules.

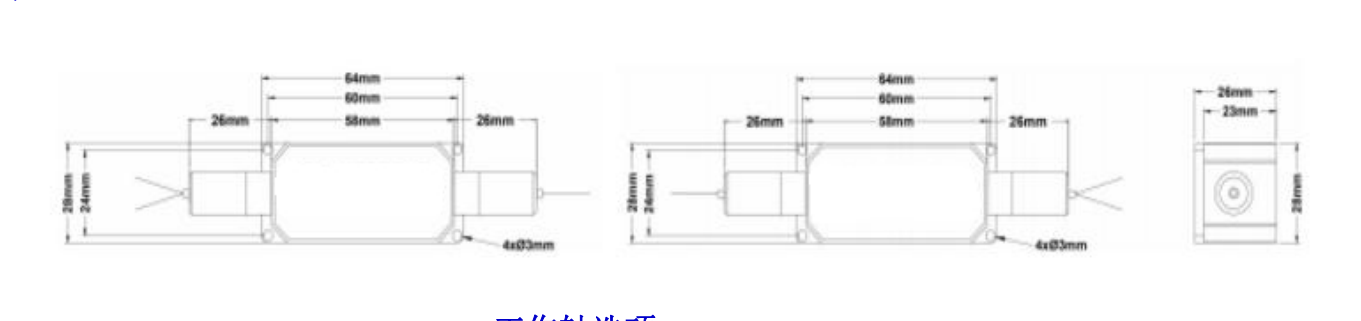

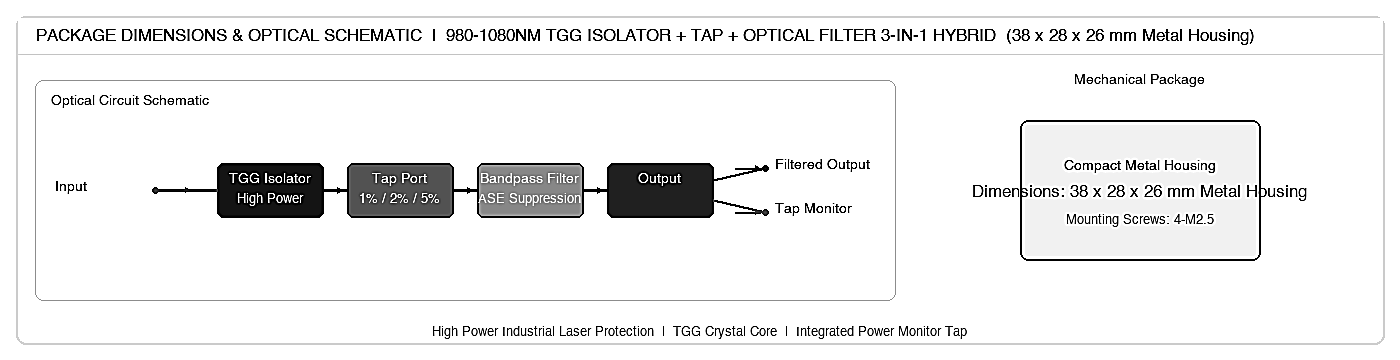

Package Drawing
Need an exact configuration?
A quotation review can begin with the application, quantity and available component information. Wavelength, optical power, fiber and termination details can be clarified with engineering.
