980/1550nm Fused WDM SWDM
KernsOptic 980/1550nm Fused WDM SWDM for Optical Fiber EDFA; Fiber Optical Laser.
Technical Specifications
Parameter
Specification
Unit
Optical Fiber - Common & Pump
Corning HI1060FLEX or OFS 980-16
-
Optical Fiber - Signal
Corning HI1060FLEX or OFS 980-16
-
Wavelength
980 / 1550
nm
Bandwidth
±10 / ±20
nm
Grade - Normal Size
P / A
-
Grade - Mini Size
P / A
-
Insertion Loss - Normal Size
≤0.15 / ≤0.25
dB
Insertion Loss - Mini Size
≤0.25 / ≤0.35
dB
Isolation - Normal Size
≥20 / ≥18
dB
Isolation - Mini Size
≥20 / ≥18
dB
PDL - Normal Size
≤0.05 / ≤0.10
dB
PDL - Mini Size
≤0.05 / ≤0.10
dB
Directionality
≥55
dB
Package Dimensions
dia. 3.0 x 40 mm / dia. 3.0 x 54 mm / dia. 3.0 x 60 mm
-
Operating Temperature
-40 to +85
°C
Storage Temperature
-40 to +85
°C
Package Options - Normal
dia. 3.0x54 / 3.0x40 / 3.0x60 / 4.0x65 / 90x20x9.5
mm
Package Options - Mini
dia. 2.4x25 / 2.4x30 / 3.0x35
mm
Configuration and ordering notes
Confirm wavelength pair or channel plan, bandwidth / spacing, PM or SM fiber, power level, port configuration, package, connector and pigtail requirements.
Final wavelength, power, fiber, connector, pigtail and package options are confirmed against the selected configuration before quotation.
Review the specification table and confirm wavelength, power, fiber, connector and package for the required configuration.

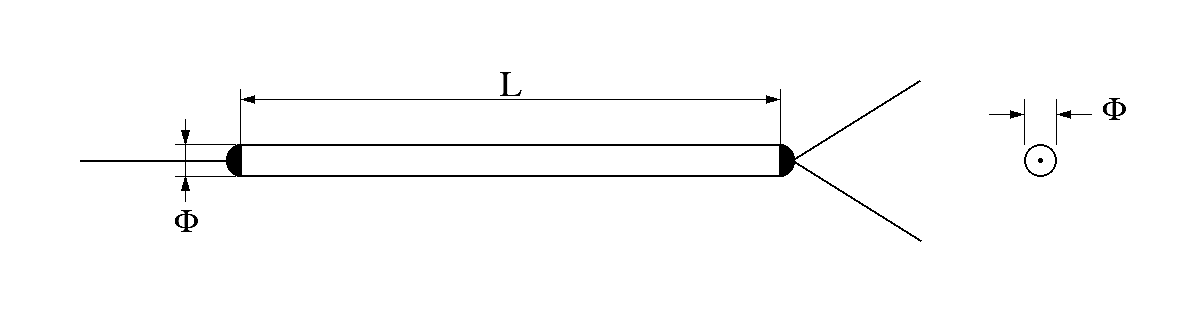

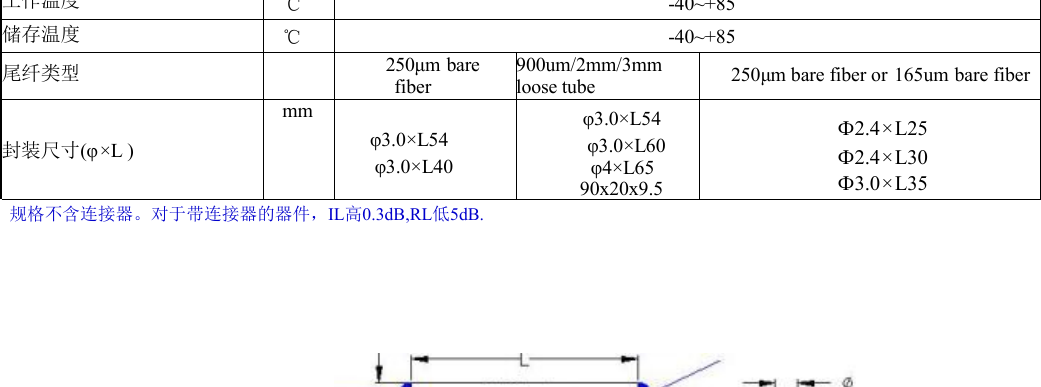

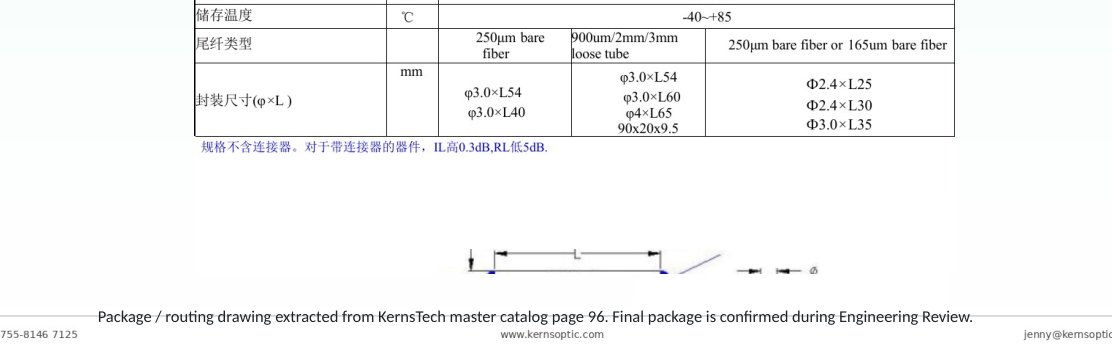

Package Drawing
Need an exact WDM or filter configuration?
A quotation review can begin with the application, quantity and available channel or fiber information. Engineering can clarify open configuration details.
