980/1060nm Fused WDM SWDM
KernsOptic 980/1060nm Fused WDM SWDM for Fiber Optical EDFA; Fiber Optical Laser.
Technical Specifications
Parameter
Specification
Unit
Optical Fiber - Common & Pump
Corning HI1060FLEX or OFS 980-16
-
Optical Fiber - Signal
Corning HI1060FLEX or OFS 980-16
-
Wavelength
980 / 1060
nm
Bandwidth
975-985 / 1055-1065
nm
Grade
P
-
Insertion Loss
≤0.30
dB
Isolation
≥16
dB
Polarization Dependent Loss
≤0.08
dB
Directionality
≥55
dB
Package Dimensions
dia. 3.0 x 60 mm / 90 x 20 x 9.5 mm
-
Operating Temperature
-40 to +85
°C
Storage Temperature
-40 to +85
°C
Package Options
dia. 3.0x60 / 90x20x9.5
mm
Configuration and ordering notes
Confirm wavelength pair or channel plan, bandwidth / spacing, PM or SM fiber, power level, port configuration, package, connector and pigtail requirements.
Final wavelength, power, fiber, connector, pigtail and package options are confirmed against the selected configuration before quotation.
Review the specification table and confirm wavelength, power, fiber, connector and package for the required configuration.

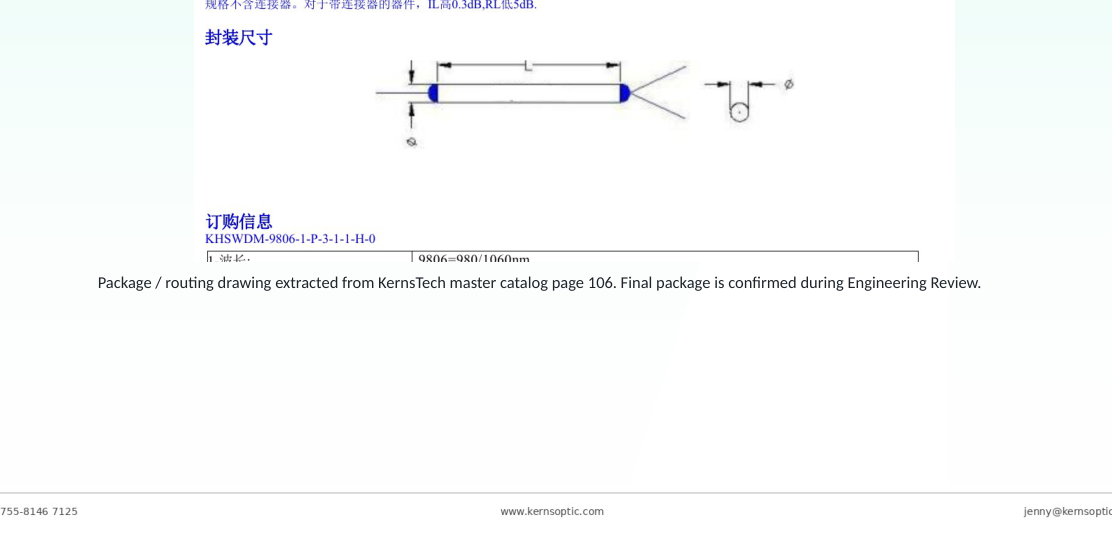

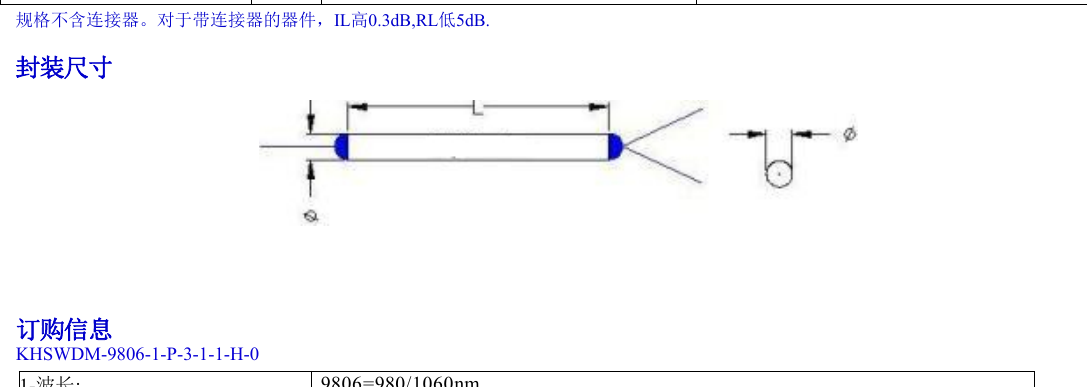

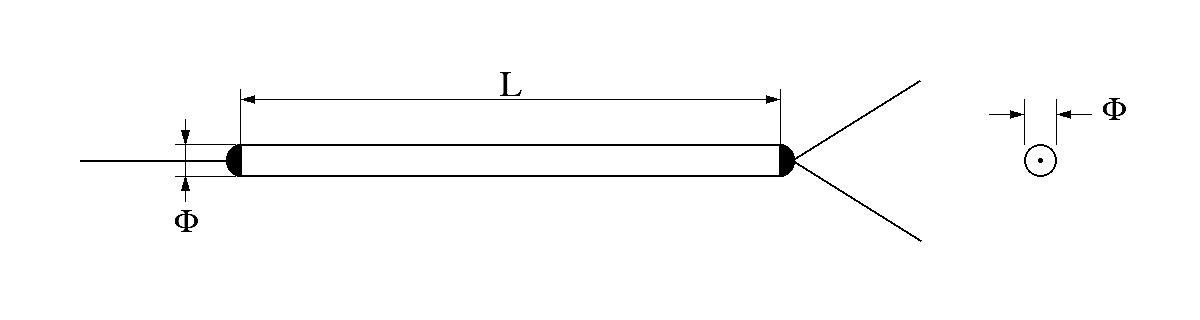

Package Drawing
