1480/1550nm Fused WDM SWDM
KernsOptic 1480/1550nm Fused WDM SWDM for Optical Fiber EDFA; Optical Fiber Laser.
Technical Specifications
Parameter
Specification
Unit
Operating Wavelength
1480 / 1550
nm
Operating Wavelength Range
1480 / 1550 ±5
nm
Grade
P / A
-
Max. Insertion Loss
0.30 / 0.35
dB
Max. Polarization Dependent Loss
0.10 / 0.10
dB
Min. Isolation
15 / 14
dB
Directionality
>55
dB
Return Loss
>55
dB
Fiber Length
1 m; others on request
-
Package Dimensions
dia. 3.0 x 60 mm / dia. 4.0 x 65 mm / 90 x 20 x 9.5 mm
-
Operating Temperature
-40 to +85
°C
Storage Temperature
-40 to +85
°C
Standard Bare-Fiber Package
dia. 3.0x60
mm
Other Orderable Packages
dia. 4.0x65 / 90x20x9.5 or specified
mm
Configuration and ordering notes
Confirm wavelength pair or channel plan, bandwidth / spacing, PM or SM fiber, power level, port configuration, package, connector and pigtail requirements.
Final wavelength, power, fiber, connector, pigtail and package options are confirmed against the selected configuration before quotation.
Review the specification table and confirm wavelength, power, fiber, connector and package for the required configuration.

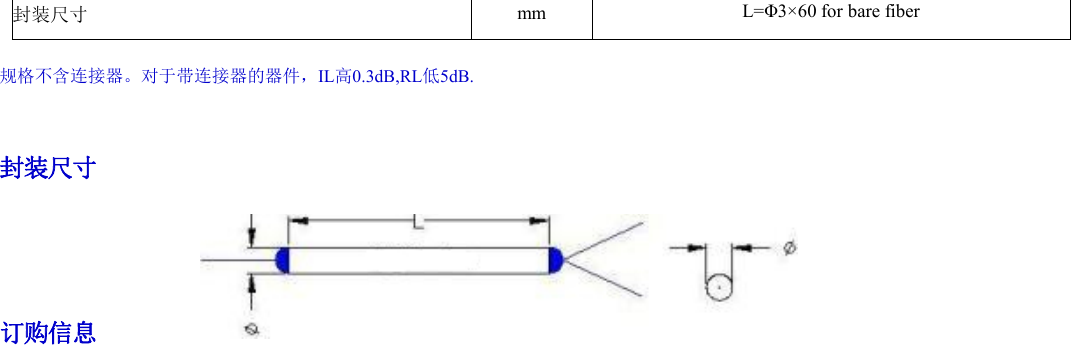

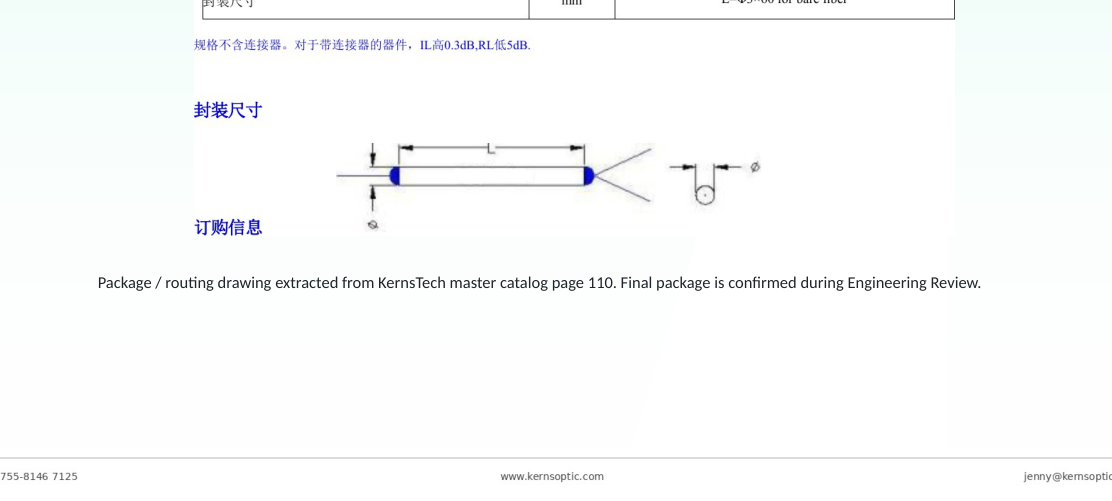

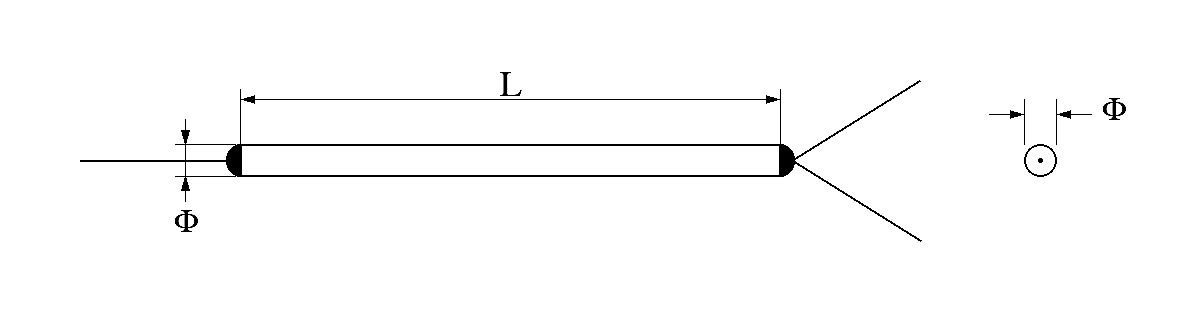

Package Drawing
Need an exact WDM or filter configuration?
A quotation review can begin with the application, quantity and available channel or fiber information. Engineering can clarify open configuration details.
