Mixed Fiber 980/1550nm Fused WDM SWDM
KernsOptic Mixed Fiber 980/1550nm Fused WDM SWDM for Fiber Optical EDFA; Fiber Optical Laser.
Technical Specifications
Parameter
Specification
Unit
Optical Fiber - Common & Pump
Corning HI1060FLEX
-
Optical Fiber - Signal
Corning SMF-28e
-
Wavelength
980 / 1550 ±10
nm
Grade
P
-
Insertion Loss
≤0.30
dB
Isolation
≥20
dB
Polarization Dependent Loss
≤0.10
dB
Directionality
≥55
dB
Package Dimensions
dia. 3.0 x 40 mm / dia. 3.0 x 54 mm / dia. 3.0 x 60 mm
-
Operating Temperature
-40 to +85
°C
Storage Temperature
-40 to +85
°C
Package Options
dia. 3.0x40 / 3.0x54 / 3.0x60 / 4.0x60 / 90x20x9.5
mm
Configuration and ordering notes
Confirm wavelength pair or channel plan, bandwidth / spacing, PM or SM fiber, power level, port configuration, package, connector and pigtail requirements.
Final wavelength, power, fiber, connector, pigtail and package options are confirmed against the selected configuration before quotation.
Review the specification table and confirm wavelength, power, fiber, connector and package for the required configuration.

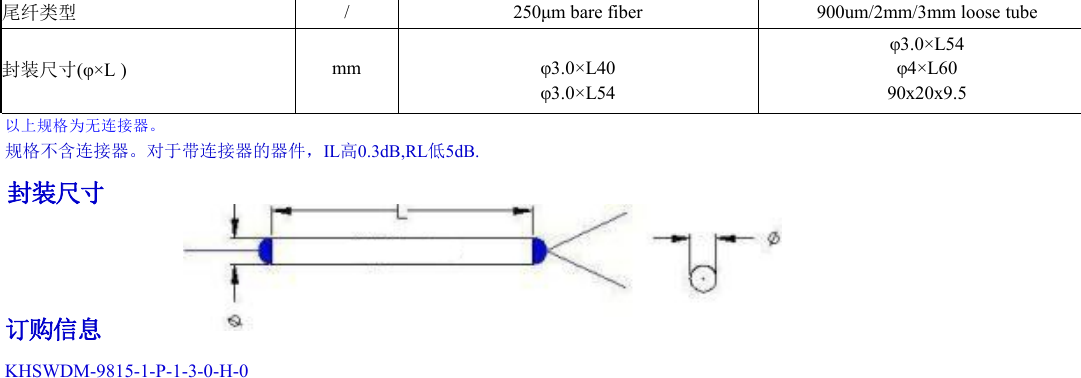

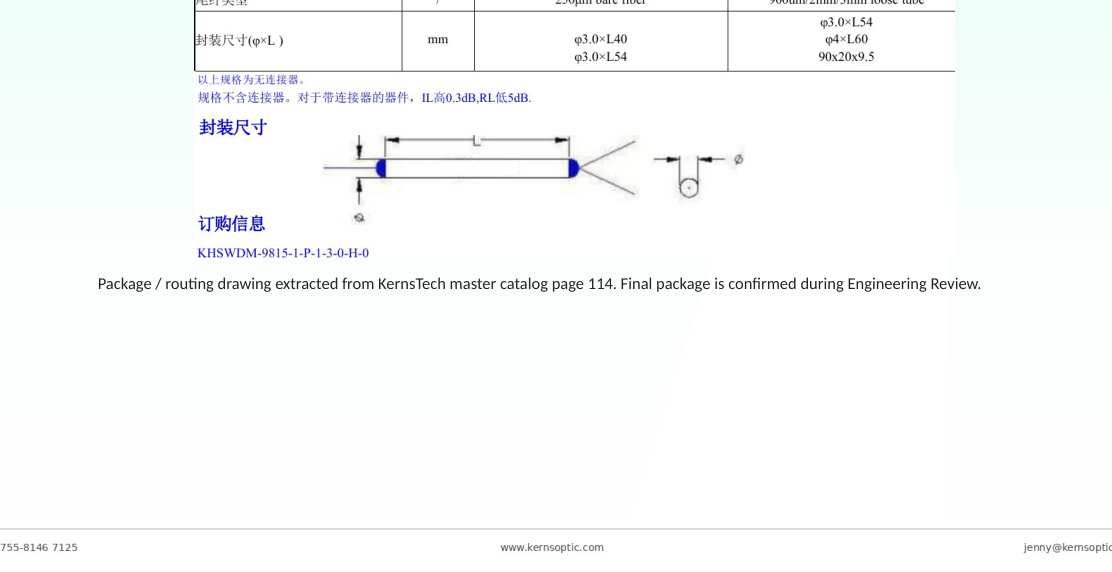

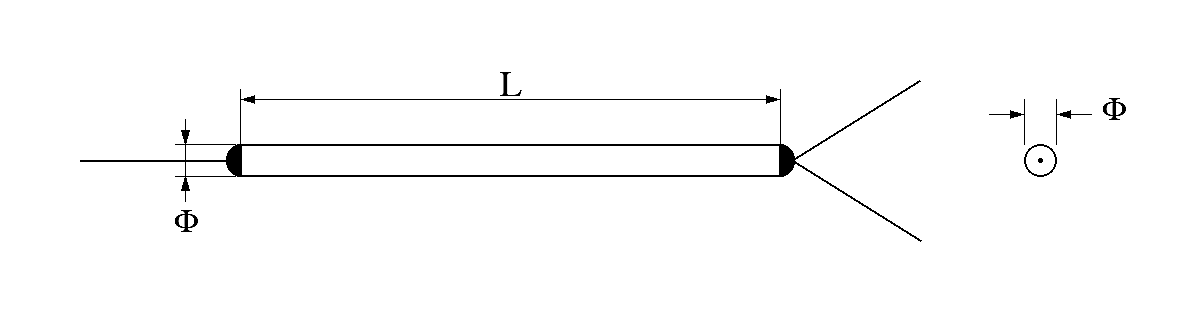

Package Drawing
Need an exact WDM or filter configuration?
A quotation review can begin with the application, quantity and available channel or fiber information. Engineering can clarify open configuration details.
