635/1310 650/1550 785/1550 Short Wavelength Fused WDM SWDM
KernsOptic 635/1310 650/1550 785/1550 Short Wavelength Fused WDM SWDM for Fiber Optical EDFA; Fiber Optical Laser.
Technical Specifications
Parameter
Specification
Unit
Wavelength Pairs
635/1310; 650/1550; published table lists 780/1550
nm
Operating Bandwidth
Short wavelength side / 1310 or 1550 ±10
nm
Insertion Loss
≤1.5 at 635/650/780; ≤0.4 at 1310/1550
dB
Isolation
≥10 at 635/650/780; ≥18 at 1310/1550
dB
Polarization Dependent Loss
≤0.10
dB
Directionality
≥55
dB
Operating Temperature
-40 to +85
°C
Fiber Type
SMF-28e
-
Configuration
1x2 or 2x2
-
Package Dimensions
dia. 3.0 x 54 mm / dia. 3.0 x 60 mm / 90 x 20 x 9.5 mm
mm
Configuration and ordering notes
Confirm wavelength pair or channel plan, bandwidth / spacing, PM or SM fiber, power level, port configuration, package, connector and pigtail requirements.
Final wavelength, power, fiber, connector, pigtail and package options are confirmed against the selected configuration before quotation.
Review the specification table and confirm wavelength, power, fiber, connector and package for the required configuration.

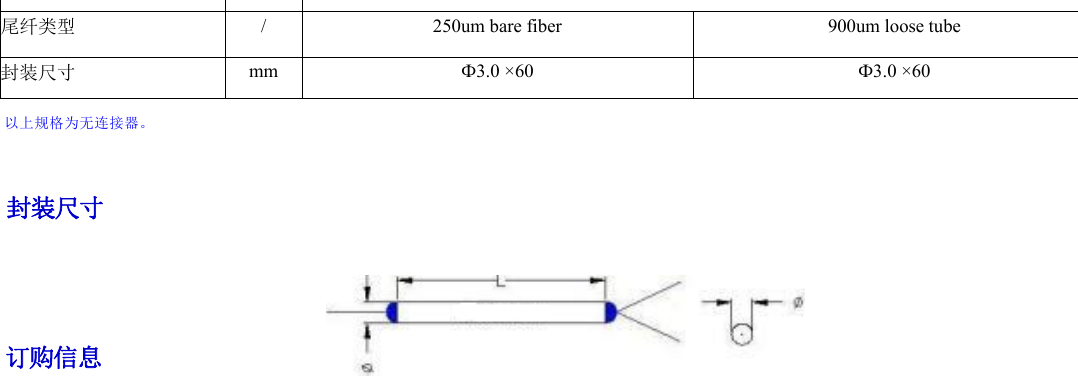

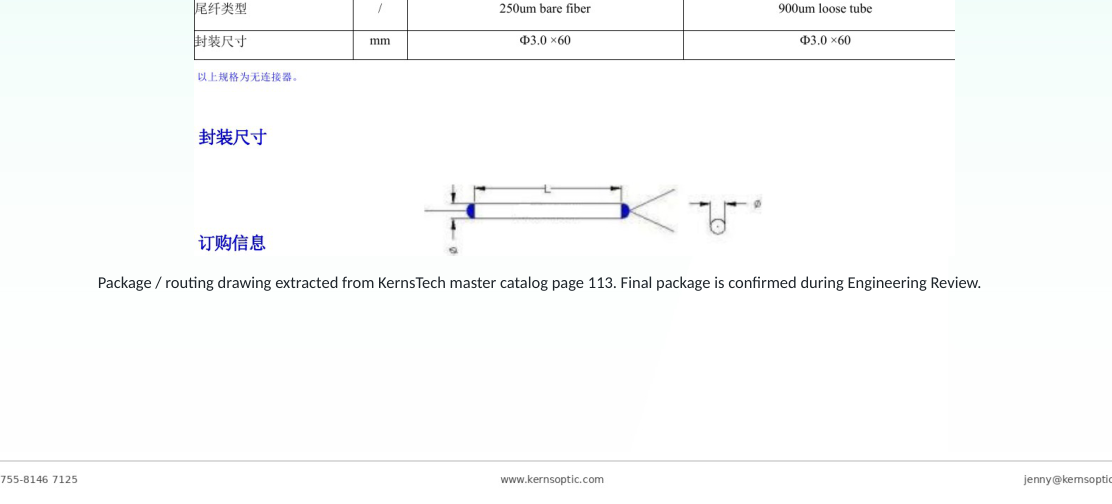

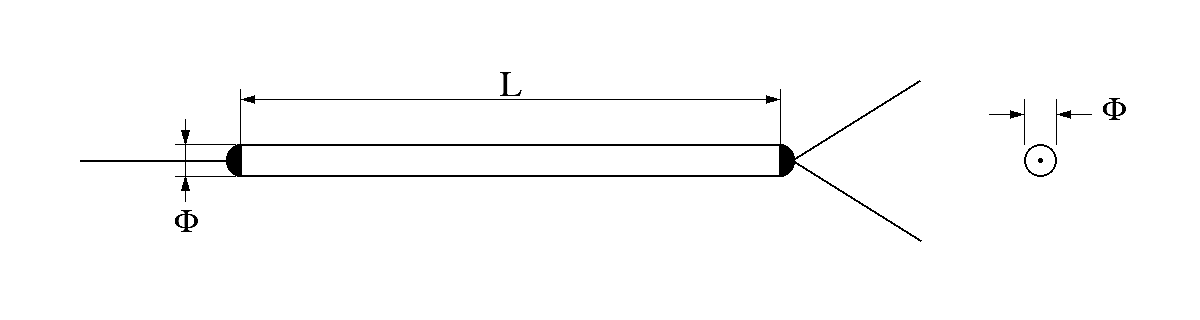

Package Drawing
